Home /Products/Industrial Melting Furnace/Zinc ore smelting furnace on sale cheap

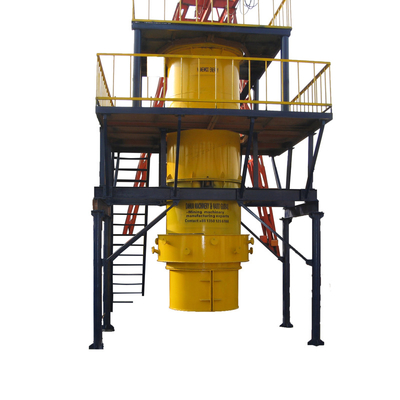

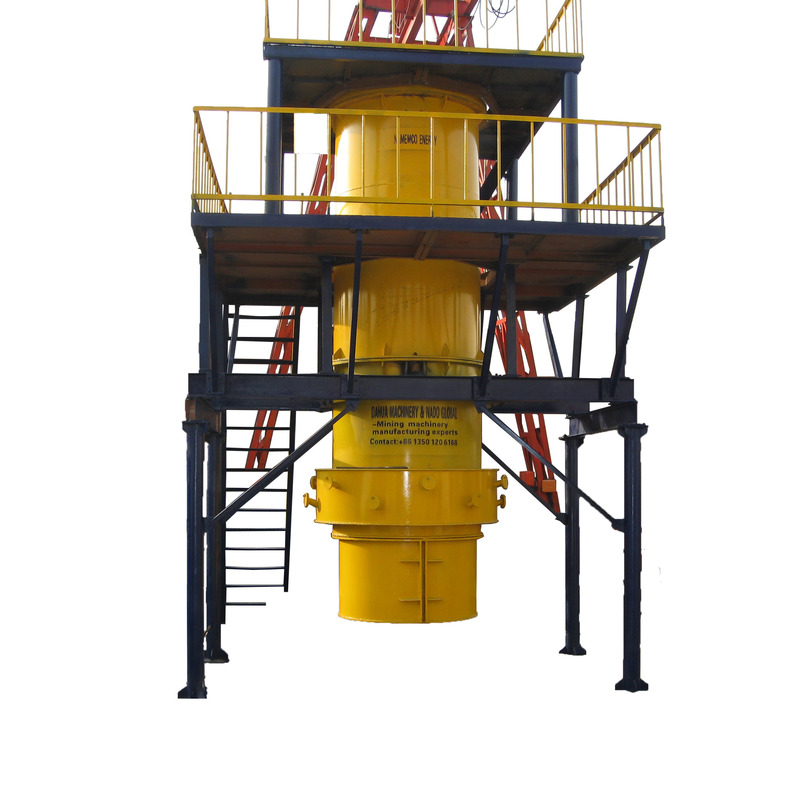

Zinc ore smelting furnace on sale cheap

1.0 Sets
MOQ
Zinc ore smelting furnace on sale cheap
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Blast Furnace
Usage: Melting Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: Not Available
Core Components: PLC
Voltage: 380V
Dimension(L*W*H): According To Your Order
Weight (T): 24 T
Power (kW): 30
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant
Showroom Location: Indonesia
Used: Melting Furnace
Fuel: Mixed Fuel
Name: Zinc Melting Furnace
Application: Smelting
Material: Welded-steel Plate
Melting Material: Zinc
Color: Blue,Yellow, Red, Gray
Use: Matel Melting
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
After Warranty Service: Spare Parts
Local Service Location: Indonesia
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard packaging or customers' requirement
Supply Ability: 20 Set/Sets per Quarter Take urgent orders
Product Description
Products Show
Product Description

The zinc smelting furnace is used for the primary smelting process of zinc. The zinc smelting furnace is composed of welded-steel plate parts such as furnace top, furnace body, furnace liner, furnace bottom and tuyere device. The main raw materials of the zinc smelting furnace are self-fluxing smelting furnace materials (zinc concentrate, sintered lump ore, etc.) and coke. The furnace top temperature is 400-500 degrees. When closing furnace top, the furnace temperature is 1300-1400 degrees. The furnace has water jacket. The refractory material is used in the furnace body and the bottom of the furnace and the throat. The throat is the outlet of slag and blister zinc. The refractory material is made of high-alumina brick, which has better slag resistance and erosion resistance.

Product Name
zinc smelting furnace
Material
welded-steel plate
Color
blue, yellow, red, grey
Output
5-500 tons per day (depends on zinc content of raw material)
Used
smelting zinc
Packing
Installing

Zinc Smelting Furnace installing in Indonesia.

Our Company

Dahua Machinery Co., Ltd.

Dahua Machinery Co., Ltd. is a professional manufacturer of 50-2000 tons of whole set of dressing equipment and non-ferrous metal smelting equipment per day; annual output of 44-600 thousand tons of complete set of cement equipment; annual output of 20-300 thousand tons of coal factory production line, mining powder production line, ball/mill production line, ball mills, cushers.
Since 90s of 20th century, we have achieved new step of production integrate with technical after successfully cooperating with Beijing Metallurgical Equipment Research Institute. In the meantime, we have obtained the technical import and export certificate of the People's Republic of China in 2005.
At present Dahua Machinery Industrial Co., serves hundreds of local and foreign users. we also got high praise and good reputation from not only China, but also Africa, South-east Asia, Russia and many Mid-east countries like Saudi Arabia and Turkey, etc.
We are looking forward worldwide customers to visit and purchase the products you need.
