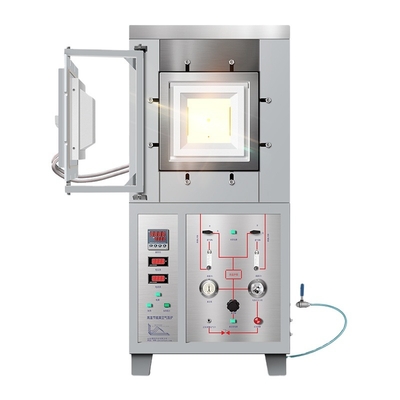

Laboratory Test Equipment 10pa Laboratory Inert Atmosphere Vacuum Heating Muffle Furnace

1 Set
MOQ
Laboratory Test Equipment 10pa Laboratory Inert Atmosphere Vacuum Heating Muffle Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Laboratory Heating Equipments
Model Number: ZQLB
Product Name: Labraotory Vacuum Chamber Furnace
Application: Laboratory Heating Test Equipment
Max Temperature: Depends
Working Temperature: 1100C(Continuous)
Chamber Size: Customizable
Model: GWL-ZQLB
Temperature Control: 1C/-1C(Depends On The Chamber Size)
Heating Rate: Max 20C/min
Warranty: 1 Year
Furnace Control Method: Temperature Controller
Basic Infomation
Model Number: ZQLB, GWL-ZQLB
Payment & Shipping Terms
Packaging Details: The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the the container is too tight, we will use pe film for packing or pack it according to the real situations.
Supply Ability: 100 Set/Sets per Month Provide electric furnace customization and OEM service
Product Description
Product Description
Product Name
High Temperature Vaccum Muffle Furnace
Material
Aluminum Fiberboard(Refractory materials) + Sic (Heating elements)
Vacuum degree
-0.1Mpa
Package
Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods.

Abstract

Vacuum furnace, that is, the use of vacuum system (vacuum pump, vacuum measuring device, vacuum valve and other components after careful assembly) in this particular space of the furnace chamber will be part of the material discharged from the furnace chamber, so that the pressure in the furnace chamber is less than a standard atmospheric pressure, the chamber space to achieve a vacuum state, this is the vacuum furnace.

Principle

Vacuum furnace is generally composed of main engine, furnace chamber, electric heating device, sealed furnace shell, vacuum
system, power supply system, temperature control system and external transport vehicle. The sealing furnace shell is welded to
carbon steel or stainless steel, and the joint surface of the detachable parts is sealed with vacuum sealing material. Adopt water- cooled structure to ensure the service life of electric furnace.

Control panel

The control panel is equipped with an intelligent temperature controller, which can be programmed and set according to the operating temperature. At the same time, the panel is equipped with two floating ball flowmeters (optional digital display mass flowmeter when the customer requires higher precision), which can be used to enter the atmosphere according to the demand. The panel is equipped with pointer pressure gauge with the range of -0.1mpa.

Furnace Linings

The furnace lining is made of vacuum-formed high-purity alumina poly light material, and the position where the materials are easy to touch (port and bottom of the furnace) is made of lightweight hollow aluminum oxide plate with high operating temperature, small heat storage, rapid cooling resistance, no cracks, no slag, good insulation performance (the energy-saving effect is more than 60% of the traditional furnace).

Vacuum pump

GWL offers a variety of vacuum system components, from basic mechanical pumps to roots pumps and diffusion pump sets, for customers' different process requirements. Ensure customer's specific requirements for vacuum. After the vacuum is completed, the different atmosphere can be entered according to different technical requirements. Each vacuum furnace is equipped with a gas flow meter to facilitate the monitoring of gas flow.

Super Alloy Resistance Wire

Ni-cr resistance wire (contains molybdenum)has the characteristics of high resistivity, Good corrosion resistance at high temperature, especially suitable for use in an atmosphere containing sulfur and sulfide, low resistance temperature coefficient, and high operating temperature. normally maximum using temperature is under 1200c.

Silicon carbide rod(Sic)

Silicon carbon rod is made of high purity green hexagonal silicon carbide as the main raw material, according to a certain ratio of processing and blank, after 2200℃ high temperature silicon recrystallization sintering and made of rod, tubular non-metal high temperature heating element.It is usually used below 1600 degrees Celsius.

Silicon molybdenum rod(Mosi2)

Mosi2 rod resistive heating element, based on molybdenum disilicide, resistant to high temperature and oxidation. When used in a high-temperature oxidizing atmosphere, a layer of bright and SiO2 glass film is formed on the surface, which can protect the inner layer of the si-mo rod from oxidation.Normoly using under 1800 degrees Celsius.
Product Usage
It is mainly used for cold and hot die steel, high speed steel, elastic alloy, high temperature alloy, stainless steel, titanium alloy, magnetic materials and other materials of high pressure gas quenching, vacuum sintering, vacuum brazing and other processes.
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.

Our Services & Strength

Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q: IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service. And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
