Home /Products/Heat Treatment Furnace/Flange Gear Forgings Rotor Aluminum Alloy Molds Factory Price Trolley Resistance Heat Treatment Furnace

Flange Gear Forgings Rotor Aluminum Alloy Molds Factory Price Trolley Resistance Heat Treatment Furnace

1.0 Sets
MOQ
Flange Gear Forgings Rotor Aluminum Alloy Molds Factory Price Trolley Resistance Heat Treatment Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC
Voltage: 380V
Dimension(L*W*H): 1100*550*450 Mm
Weight (T): 3.5 T
Power (kW): 65
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Product Name: Trolley Type Annnealing Furnace
Application: Flange Gear Forgings Rotor Aluminum Alloy Alloy Steel Moulds
Rated Power: 65kw
Rated Temperature: 1000℃
Rated Voltage: 380V
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Packed in standard export wooden cases
Supply Ability: 10 Set/Sets per Month
Product Description
Machine Overview

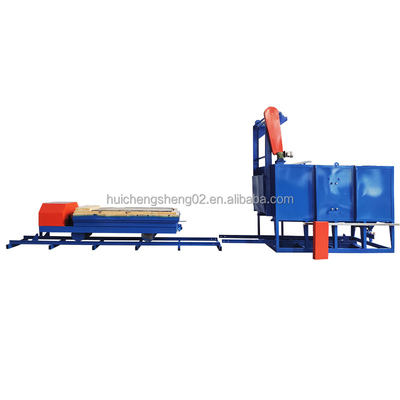

Factory price trolley resistance heat treatment furnace
RT2 series of high-temperature car-bottom resistance furnaces is national standard, energy-saving and periodic resistance furnace, with ultra-energy-efficient structure, using composite fiber for heat preservation, and ultra-light and high-strength refractory materials. Mainly used for all kinds of metal quenching, annealing, distressing, aging and other heat treatment. The furnace mouth has a brick for preventing workpiece impact and the trolley uses double-layer sealing, with integrated rail connection and easy mounting and operation. It can save energy from 60% ~ 70%.
Brief Introduction :
This series of bogie type furnace is energy-saving and cycle type furnace . Mainly be used for pressure vessel , die steel , alloy steel, special steel, high manganese steel plate, high chromium and low chromium ball , roll , flange, nodular cast iron and other metal material hardening , annealing, and other heat treatment .
Product Details
Trolley
The bottom of the chamber is mounted on a cart, which can be driven into or out of the oven along the track smoothly and safely. Workpieces can be placed in the furnace bottom plate, which can protect the heating element from damage. The bottom plate of furnace is equipped on the platform to bear the workpiece under pressure and high temperature.
Furnace Chamber And Heat Element
Chamber insulation is high aluminum fiber, which is long life and economy. 1.Low thermal conductivity, high flexibility, good stability, hard products vacuum suc -tion filter molding, uniform structure, high compressive strength, small heater wire shrinkage. 2.Highest operating temperature ℃: 1350 3.low aspect weight save space.
Temperature control system
1.The controllers system is equipped with over temperature alarm and overtempera -ture power off . 2.Adopts HMI touch screen control system , can reading and check actual temperature curve of furnace each zone Main record temperature data, steel belt running speed, operation time, malfunction time and over-temperature alarm time. The datacan be stored within the touch screen storage card, and can copy the data use U disk.
3. System support for Spanish language, English, Chinese etc.
Product Paramenters
Customer Site
Company Profile
Foshan Huichengsheng Furnace Industry Co., Ltd.It is a diversified development company. Huichengsheng specializes in manufacturing all kinds of non-standard industrial furnaces, medium and high temperature resistance furnaces, various heat treatment furnaces, gas protection annealing furnaces/brazing furnaces/sintering furnaces/quenching furnaces, pit type furnace, box type furnace, car bottom furnace, mesh belt furnace, aluminum alloy (T4/T6) heat treatment special equipment. It has unique advantages in technology, combined with the most advanced furnace technology in foreign countries, and has outstanding features of energy saving, environmental protection, high efficiency and good use. Provide one-stop heat treatment solutions for domestic and foreign companies.
Our services
We has strong and professional technical team, which consists of more than ten engineers. Their average working life is more than 25 years. They not only have rich experience in electric furnace design, production, and installation, but also have solid industry theoretical knowledge. We insist on quality first, service first, based on the industry and serving the world. A strong and professional sales and after-sales service team guarantees one-to-one and 24-hour online heat treatment queries in different regions.
● Pre-sales service 1.We has a strong design research and development team , to provide professional technical and heat treatment processing guide before place order. 2.Provide make samples test, to give professional and exactly heat treatment processing for customer products. 3.Before shipment, all furnaces are will be arrange test to make sure the quality is good. Testing furnace videos, will send to the customers, then, pay us the balance. ● After-sales service 1.Will arrange rich experience engineer going to customer site for installation and debugging, training customer’s technician how to use, installation and maintenance the furnace. 2.Lifetime online technical and maintenance support: We will building an instantly messaging group, consisting of you, me and our relevant engineer team , providing free technical online support and video technical support. In the case, all kinds of information could be conveyed and problems solve instantly and not delay your production schedule.
