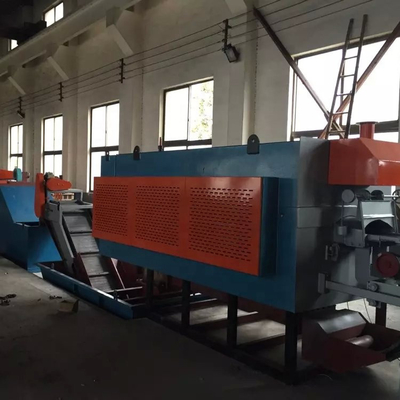

Carburnizing for screws/parts screw heat treatment furnace for carbonizing quenching hardening screws

1 set
MOQ
Carburnizing for screws/parts screw heat treatment furnace for carbonizing quenching hardening screws
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Gearbox, Gear
Voltage: 380
Weight (T): 10 T
Power (kW): 55
Warranty: 1 Year
Key Selling Points: Accurate Temperature Control
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other
Showroom Location: None
Application: Carburnizing For Screws/parts
Capacity: 60-90 Kg / Hour
Furnace Type: Electrical Heating
Working Temperature: 950 ℃
Advantage: Continuous Type With Cleansing
Color: Blue/ Customized
Material: Steel
Suitable Metal: Carbon Steel
Loading Capacity: 10~3000kg (adjustable)
Basic Infomation
Payment & Shipping Terms
Supply Ability: 20 Piece/Pieces per Month
Product Description
FEATURES AT A GLANCE
- Effective working zone： 500X2800X80mm(WxLxH)

- Effective size of mesh belt:500mm

- Furnace heating time:30-120min

- Capacity:60-90kg/hour for carburizing;80-140kg/hour for quenching



PRODUCT SPECIFICATIONS
*The furnace pipe adopts the sealed tank which stamping forming and welded together of 6 mm Sweden import 310 s stainless steel plate,surrounded with groove profile strengthening rib.The jar is equipped with gas curtain tube,and after the tank there are Blanking mouth and mesh belt backing pipe.the backing pipe offer the Water cooling jacket and water seal tank,guarantee the seal of the furnace,Small gas consumption.the furnace pipe dimension is 4000（L）x280(W)x80(H)mm.

*Conveyor mesh belt adopts Φ 1.6 x 2.2 mm Φ Sweden import 310 s heat resistant alloy wire manufacturing,Mesh belt width 220 mm.

*the furnace lining adopts the saving-energy light refractory brick and Aluminum silicate fiber insulation cotton.

*Heating element using OCr21Al6Nb high temperature heating wire which Distribution in the furnace’s up and down,Uniform heating.Can be in exchange on the side of the furnace. Convenient for maintenance, don’t need to stop the furnace when replacement.

*Five zones control, temperature control adopts intelligent digital display instrument control solid state relay control,with
3 ampere meter and With the function of blackout when overtemperature and alarm.

*In the middle of the furnace and the tail with a drip tube for each one,Each equipped with two-way drip pipes,so that the
Kerosene and methanol can be dropped into the furnace convenience. Equip with methanol and kerosene fowermeter.
*hold-up vessel for Kerosene and methanol.

*capacity for quenching:60-120kg/h capacity for sheet carburizing:20-60kg/h

* the quenching oil tank adopts A3 steel plate and structural steel welded. The dimension of the oil tank is 4000（L）×900（W）×780（h）mm
* Quenching liquid USES the bright quenching oil or water quenching.
* quenching oil tank adopts 400mm width mesh belt to promote the workpiece and the height of hoisting frame is 1200mm.

Packaging and Shipping



Certifications
Recommend Products
FAQ
1. What is your MOQ?
1 set of any machines.

2. Where is your company located? Can we visit before placing an order?
Yes, you can visit us during business hours (Monday-Friday 08:30-17:30), factory is located in Guangzhou, Guangdong Province.

3. What is your delivery time?
This is depending on your order quantity, however, we aim to deliver your order within 10-15 working days.

4. We are based in EU countries, do you have CE certificate for our import?
Yes, we have CE certification on all our models, and we are experienced in exporting to any EU countries.

5. Do you have user instruction for machines?
Yes, we have detailed user manual in English for each models.

6. Can we do a sample test before purchasing a larger quantity of machines?
Yes, all you have to pay is mold and material cost, then we will use our machine to make the sample product you require, you can check the samples that made from our machines before you make purchases.
