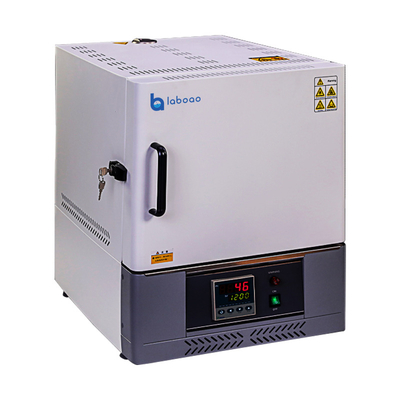

Laboratory 2L 7L 16L 24L 36L 1000 degree muffle furnace LMF-10D

1.0 Sets
MOQ
Laboratory 2L 7L 16L 24L 36L 1000 degree muffle furnace LMF-10D
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Classification: Laboratory Heating Equipments
Customized Support: OEM, ODM
Model Number: LMF-10D
Product Name: Muffle Furnace
Temperature Range: 1000℃
Temperature Uniformity: ±1℃
Heating-up Time: ≤30min
Open Mode: Outward Opening
Heating Power: 1.5kw 3kw 6kw 6.6kw 10kw
Controller: Single-stage Temperature Control, Digital Display
Program Mode: Single-stage Operation
Volume: 2L 7L 16L 24L 36L
Power Supply: AC220V 50Hz AC380V 50Hz
Basic Infomation
Model Number: LMF-10D
Payment & Shipping Terms
Packaging Details: plywood case package
Supply Ability: 5000 Set/Sets per Month
Product Description
Product Description

1000 Laboratory 2L 7L 16L 24L 36L 1000 Degree Muffle Furnace

Box-type resistance furnace, also known as muffle furnace, is the laboratory basic heating equipment. It is widely used in industrial and mining enterprises, aviation, aerospace systems, research institutes, universities and other experimental and laboratory. It is an essential instrument for sintering, melting, heat treatment, volatile matter, etc.

Feature

1. Integrated design, light and compact structure

2. Vacuum-formed polycrystalline mullite fiber furnace to ensure efficient heat preservation, and three-sided heating through special alloy heating wires provides the best temperature uniformity

3. Protection system: power off when opening the door, and delayed power resumption to ensure safety

4, Double shell air insulation, low surface temperature

5, Equipped with exhaust device to facilitate ashing

6, Precise temperature: the perfect combination of high-precision microcomputer temperature controller and precision sensor

7, Dedicated function keys for temperature setting

8, Auxiliary menu to realize overheating alarm, deviation correction, menu lock, overheating prevention device

9, Safety: overheating alarm, menu lock, overheating prevention, power off when opening the door, delayed power resumption

Specification

Model

LMF-2-10D

LMF-7-10D

LMF-16-10D

LMF-24-10D

LMF-36-10D

Performance

Temperature Range

1000

Temperature Resolution

1

Temperature Uniformity

±1

Heating-up Time

≤30min

Structure

Shell

Spraying cold rolled steel

Chamber

polycrystalline mullite fiber

Heater

Nickel chromium aluminum alloy wire

Thermal Insulation

Double forced air diversion

Open Mode

Outward Opening

Heating Power

1.5kw

3kw

6kw

6.6kw

10kw

Controller

Controller

Single-stage temperature control, digital display

Control Mode

Microcomputer PID control heating output

Setting Mode

Slightly touch the five buttons, digital setting mode

Display Mode

Double row LED digital display

Timer

0~999.9hours

Operation Function

Fixed value operation, program operation

Program Mode

Single-stage operation

Sensor

K-type thermocouple

Auxiliary Function

Correct functioning, door control functioning

Safety Device

Over current leakage protection switch

Over current protection switch

Specification

Interior Size(mm)

120*200*80

200*300*120

250*400*160

300*400*200

300*400*300

Exterior Size(mm)

440*520*650

520*620*690

590*730*750

610*730*760

610*760*860

Packing Size(mm)

600*677*766

680*777*806

750*887*866

770*887*876

770*887*976

Volume

2L

7L

16L

24L

36L

Power Supply

AC220V 50Hz

AC380V 50Hz

Standard Configuration

Equipment*1set, Instruction*1pc, Certificate
