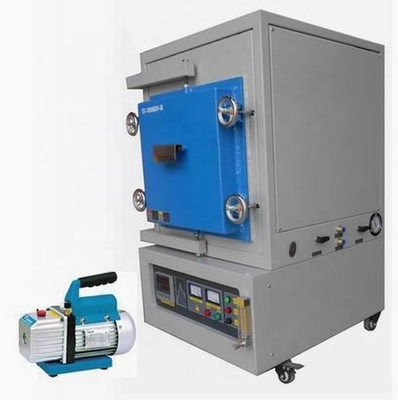

ST-1600MVA-3 Laboratory vacuum Atmosphere Muffle Furnace up to 1600.C

1.0 Sets
MOQ
ST-1600MVA-3 Laboratory vacuum Atmosphere Muffle Furnace up to 1600.C
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
Classification: Laboratory Heating Equipments
Customized Support: OEM, ODM, OBM
Model Number: ST-1600MVA-3
Inside Chamber Size:: 200x200x200mm(8x8x8", 8 Liter)
Standard Working Temperature:: 1500.C(continuous)
Maximum Working Temperature:: 1600.C( < 3 Hrs)
Heating Element:: MoSi2 Heating Elements
Furnace Atmosphere:: Nitrogen, Argon And Other Inert Gases
Temperature Control:: 30 Steps Programmable And PID Automatic Control
Heating Rate:: 0~10.C / Min (suggestion: < 10.C)
Temperature Accuracy:: +/- 1.C
Working Voltage:: AC 220V Single Phase 60/50 Hz (choose Any)
Thermocouple: B Type
Basic Infomation
Model Number: ST-1600MVA-3
Payment & Shipping Terms
Packaging Details: wooden case lined with plastic paper and flexible foam
Supply Ability: 200 Set/Sets per Month
Product Description

200x200x200mm(8x8x8", 8 Liter) Atmosphere Laboratory Muffle Furnace up to 1600.C

We offer OEM service for you!

200x200x200mm(8x8x8", 8 Liter) Atmosphere Laboratory Muffle Furnace up to 1600.C
Sample Specifications:

Inside Chamber Size:200 x 200 x 200 mm(8"x8"x8", 8 Liter)

Standard Working Temperature:1500.C ( continuous )

Maximum Working Temperature:1600.C ( < 3 hrs)

Furnace Atmosphere: Nitrogen, Argon and other inert gases

Heating Element :MoSi2 heating elements

Thermocouple:B type

ST-1600MQ furnace can be working under Vacuum, Nitrogen and other inert gases atmosphere situation, which consists of high quality alumina fiber brick and MoSi2 heating elements with chamber of 8"x8"x8", and temperature is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1 oC and 30 segments programmable up to 1500oC. It is an ideal tool for materials annealing and sintering in your research laboratory.

Main Specifications:

Inside Chamber Size:

200 x 200 x 200 mm (8"x8"x8", 8 Liter)

Standard Working Temperature:

1500.C ( continuous )

Maximum Working Temperature:

1600.C ( < 3 hrs)

Furnace Atmosphere:

Nitrogen, Argon and other inert gases

Temperature Control:

30 steps programmable and PID automatic control

Heating Rate:

0~10.C / min (suggestion: < 10.C)

Temperature Accuracy:

+/- 1.C

Heating Element:

MoSi2 heating elements

Working Voltage:

AC 220V Single Phase 60/50 Hz (or according to your requirement)

Max. Power:

10 KW

Outside Size:

650 x 700 x 1000 mm

Net Weight:

230 Kg

Standard Sizes:

Model

Chamber size(WxHxDmm)

Max. Temperature

ST-1600MQ

150x150x150mm (6"x6"x6")

1600.C

ST-1600MQ

150x150x200mm (6"x6"x8")

1600.C

ST-1600MQ

200x200x200mm (8"x8"x8")

1600.C

ST-1600MQ

200x200x300mm (8"x8"x12")

1600.C

ST-1600MQ

250x250x300mm (10"x10"x12")

1600.C

ST-1600MQ

300x300x400mm (12"x12"x16")

1600.C

Applications:

1.Crystallize;

2.Sintering or Roasting or Forging or calcining;

3.Ashing;

4.Heat treating or Preheating;

5.Quench or Hardening or Austemper

6.Annealing or Tempering or Normalizing

7.melting or smelting

8.Synthesis and degradation or pyrolysis or decomposing
