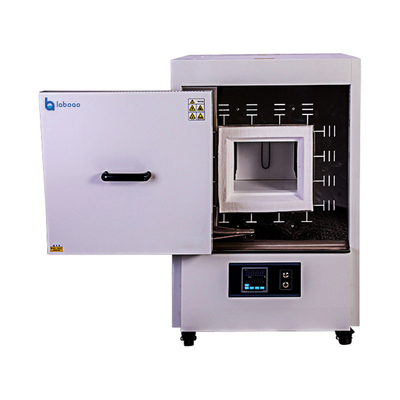

Polycrystalline Mullite Fiber Centimeter Temperature 1700 Degree Box Shaped Muffle Furnace For Lab R&D

1.0 Sets
MOQ
Polycrystalline Mullite Fiber Centimeter Temperature 1700 Degree Box Shaped Muffle Furnace For Lab R&D
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Classification: Laboratory Heating Equipments
Customized Support: OEM, ODM
Model Number: LMFC-17T
Product Name: Muffle Furnace
Chamber Material: Polycrystalline Mullite Fiber
Temperature Uniformity: ±1℃
Temperature Range: 300℃-1700℃
Open Mode: Sliding
Package: Plywood Case Package
Volume: 2L, 4L, 8L ,12L,16L,20L
Key Words: Muffle Furnace
Basic Infomation
Model Number: LMFC-17T
Payment & Shipping Terms
Packaging Details: plywood case package
Supply Ability: 5000 Set/Sets per Month
Product Description

Product Description

Superhigh Temperature 1700 Degree Box Type Muffle Furnace for Lab R&D

Box-type resistance furnace, also known as muffle furnace, is the laboratory basic heating equipment. It is widely used in industrial and mining enterprises, aviation, aerospace systems, research institutes, universities and other experimental and laboratory. It is an essential instrument for sintering, melting, heat treatment, volatile matter, etc. Precisely controlled sintering, melting, element analysis and physical determination within 1700℃

Feature

1. Integrated design, light and compact structure

2. Vacuum-formed polycrystalline mullite fiber furnace to ensure efficient heat preservation, and three-sided heating through special alloy heating wires provides the best temperature uniformity

3. Parallel side sliding opening furnace door keeps the hot end away from operation

4. Protection system: power off when opening the door, and delayed power resumption to ensure safety

5. Double shell air insulation, low surface temperature

6. Equipped with exhaust device to facilitate ashing

7. Precise temperature: the perfect combination of high-precision microcomputer temperature controller and precision sensor

8. Dedicated function keys for temperature setting

9. Auxiliary menu to realize overheating alarm, deviation correction, menu lock, overheating prevention device

10. Safety: overheating alarm, menu lock, overheating prevention, power off when opening the door, delayed power resumption

Specification

Model

Touch type(T)

LMFC-2-17T

LMFC-4-17T

LMFC-8-17T

LMFC-12-17T

LMFC-16-17T

LMFC-20-17T

Performance

Temperature Range

300-1700

Temperature Resolution

1

Temperature Uniformity

±1

Heating-up Time

≤40min

Structure

Shell

Spraying cold rolled steel

Chamber

polycrystalline mullite fiber

Exhaust vent

Outer diameter: 22 Inside diameter: 18

Heater

Silicon molybdenum rods

Thermal Insulation

Double forced air diversion

Open Mode

Sliding

Heating Power

3kw

6kw

9kw

12kw

15kw

18 kw

Controller

Controller

T: 7-inch color touch screen program temperature control

Control Mode

Microcomputer PID control heating output

Setting Mode

T: Finger touch settings

Display Mode

T: LCD display

Timer

0~999.9hours

Operation Function

T: Fixed value operation, program operation

Program Mode

T: Max. 50 segments

Sensor

S-type thermocouple

Auxiliary Function

T: Correct functioning, door control functioning, real-time curve recording, USB data export

Safety Device

Over current leakage protection switch

Specification

Interior Size(mm)

150*90*150

150*150*150

300*150*150

300*200*200

300*260*210

300*260*260

Exterior Size(mm)

600*762*1102

600*762*1102

600*871*1102

680*865*1182

740*860*1182

740*870*1232

Packing Size(mm)

760*885*1310

760*885*1310

760*985*1310

840*985*1390

900*985*1390

900*985*1440

Volume

2L

4L

8L

12L

16L

20L

NW/GW(KG)

70/90

80/100

110/130

150/170

175/195

210/230

Power Supply

AC220V 50HZ

AC380V 50HZ

Standard Configuration

Equipment*1set, Instruction*1pc, Certificate*1pc
