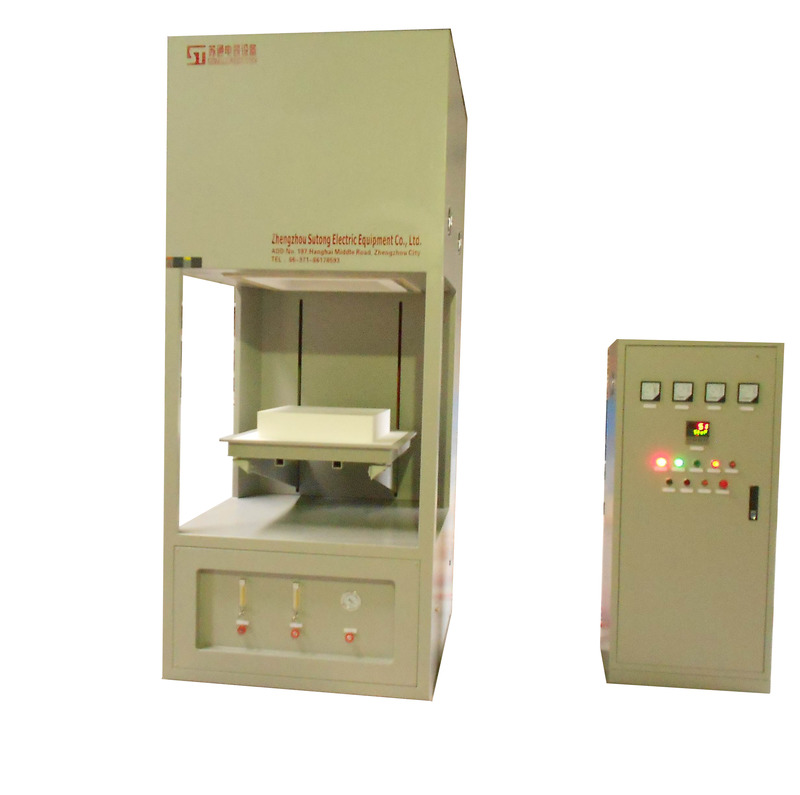

1650.C Bottom Loading Muffle Furnace With Large Capacity

1650 c Bottom Car Muffle stove with Large Capacity
1.Max Temp:1650C;Work Temp:1600.C

2.Heated by MoSi2 heating elements

3.chamber size:500x500x 500mm (20"x20"x20")

ST-1600BL Bottom Loading Furnace:The single zone, high temperature, bottom loading furnace is capable of operating at temperatures up to 1600.C in air. The furnace utilizes 1800oC MoSi2 heating elements positioned on three sides of the internal chamber. The furnace utilizes an energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation. It is an ideal tool for materials annealing and sintering.

Detailed Product Description :

Standard sizes:

The characteristics include:

1).Big yield capacity and high productivity,especially used for heating treatment of small or medium products;

2).PID automatic control via current limiting phase angle fired thyristor with 30 steps programmable,to ensure uniform furnace temperature;

3).Loading from bottom,it's convenient and easy.

Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.

Replacement will be shipped to you after photo or other evidence are provided and investigated.Major Products and Services:lab furnace,muffle furnace,tube furnace,crucible furnace,vacuum furnace,atmosphere furnace,dental furnace,silicon carbide(SIC) heating elements,Molybdenm Disilicide(MoSi2) heating elements.
