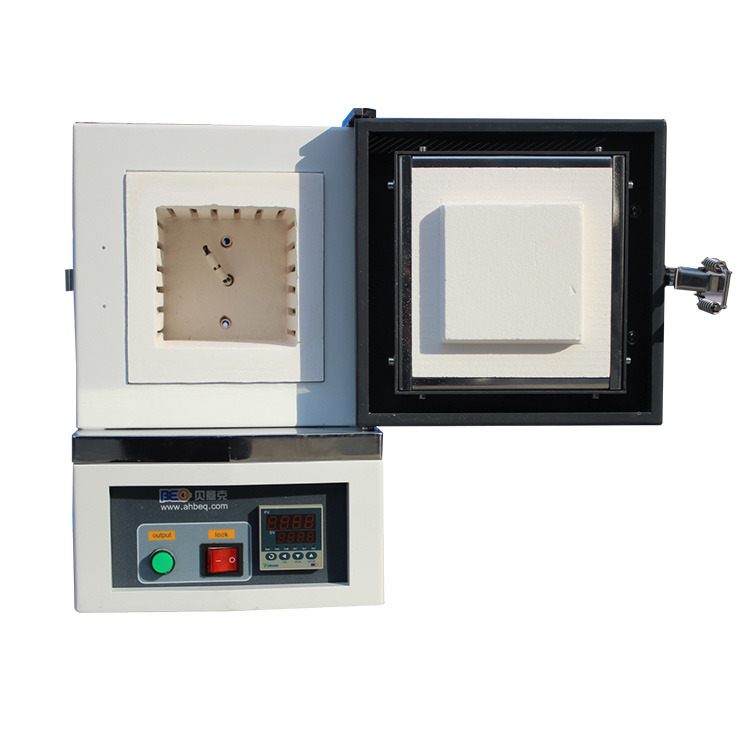

Laboratory 1100c Mini 1L Heating Muffle Furnace

1.0 Sets
MOQ
Laboratory 1100c Mini 1L Heating Muffle Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Furnace Body
Voltage: 220V
Weight (T): 0.02 T
Power (kW): 1
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: LAB
Showroom Location: None
Product Number: MF-1100C-S
Chamber Size: 100*100*100mm
Max.temperature: 1100℃(1 Hour)
Working Temperature: ≤1000℃
Package: Woody Package
Name: Heat Treatment Furnace
Application: Heating
Customization: Accept
After-sales Service Provided: Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: alumina ceramic sintering furnace
Supply Ability: 10 Set/Sets per Day
Product Description
Product Description
The fields include graphene, carbon nanotubes, high temperature phosphors, OLED organic small molecule materials, PECVD systems, and the like. In addition, the company has intelligent high and low temperature CVD system, vacuum atmosphere tube furnaces, high and low temperature muffle furnaces.

Main feature

* The furnace size is close to a laptop, capacity 1KW, weight 12kg only.
* Used in Lab as material sintering furnace, annealing furnace, smelting furnace, dental furnace, etc.
* It is possible to add a vent to be used as Nitrogen protection furnace, Argon protection furnace, Oxidizing furnace,
Carbonizing furnace.
* A general necessary electric furnace for experiment in Lab.
Power
1KW (220V) 50/60 HZ
Working Temperature
· Max. Temperature: 1100 °C
· Continuous working temperature: ≤1000 °C
Suggested. Heating Rate: ≤15°C /min
chamber size
· 100*100*100mm (1L)


Temperature Controller
· PID automatic control and auto-tune function.
· 30 programmable segments for precise thermal processing.
· Built-in protection for the over-heated and broken thermocouple.
Temperature Accuracy: +/- 1 °C.
· K type thermocouple.
Heating Elements
· Fe-Cr-Al Alloy doped by Mo

Related Products
Packing&Shipping
Company Introduction
BEQ is the professional manufacturer for material R&D equipment.

Our Services & Strength

1)Customization:Mature design team, professional production team, exquisite craftsmanship team
2)First mover:First to introduce professional organic small molecule purification equipment The first set of continuous CVD thin film graphene preparation equipment
3)Technological innovation: BEQ is the only company in the same industry in China with an independent laboratory equipped with a process department, which can do substantive tests for different process equipment, and undertake various commissioned tests for free
4)Brand:At present, there are more than 50,000 cooperative customers, gradually forming a professional, high-quality, and honest corporate image among the majority of users, and establishing a good market reputation
