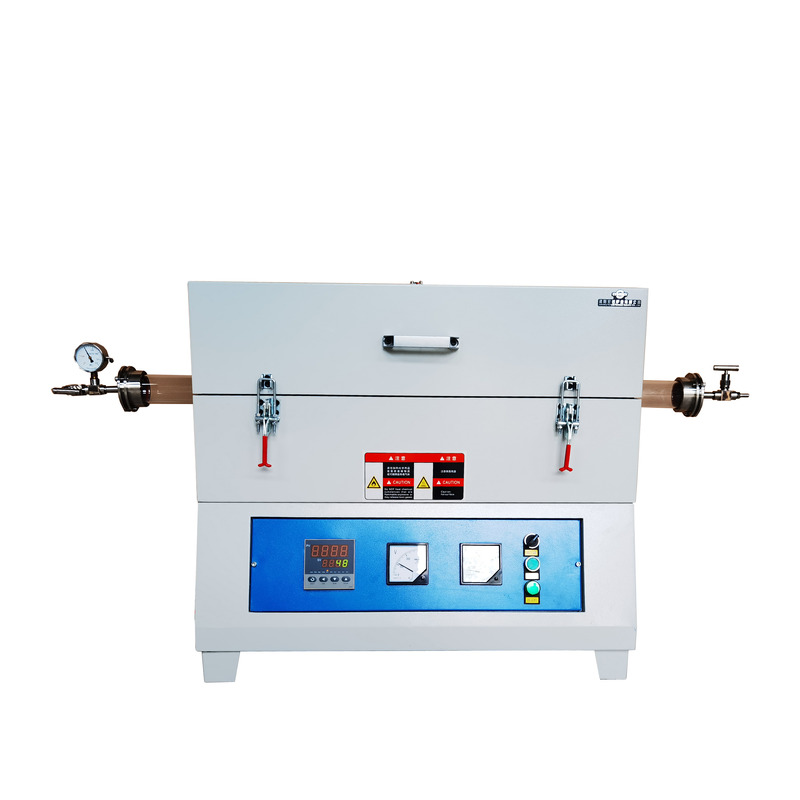

Customizable Heat Treatment Furnace Tube Resistance Furnace Tubular Muffle Furnace

1.0 Sets
MOQ
Customizable Heat Treatment Furnace Tube Resistance Furnace Tubular Muffle Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Classification: Laboratory Heating Equipments
Customized Support: OEM, ODM, OBM
Model Number: Customization
Heating Element: Silicon Molybdenum Rod
Delivery Date: 7-15days
Working Temperature: 1000-1700C
Chamber Size: Customizable
Size: Customer's Demand
Product Type: Industrail Furnace
Voltage: 220V/380V
Package: Safe Packing
Display: Digital Display
MOQ: 1 Set
Basic Infomation
Model Number: Customization
Payment & Shipping Terms
Packaging Details: Standard export packing: Internal anti-collision protection, external export wooden box packing
Supply Ability: 100 Set/Sets per Month
Product Description
Product Overview

High temperature laboratory electric tube furnace

High temperature laboratory electric tube furnace, with high quality and excellent performance, are well received by thousands of new customers every year. The harmony of functionality and design, coupled with the excellent price-performance ratio, makes this collection their ultimate choice.
FEATURES AT A GLANCE
20 years focus on the development and production of electric heating electric furnace

Intelligent temperature control
Attentive service
Easy to operate
Support customization
Direct supply from the manufacturer
Various specifications
Quality control layer by layer


Electric furnace chamber
The shell is made of heated steel plate, which is resistant to rapid heat and cold, and has good thermal
insulation performance
Simple operation
User-friendly design, easy to use

Multi-stage programming,
simple operation, convenient and fast
PRODUCT SPECIFICATIONS
Product introduction：
The 1300°CHDG series of vacuum tubular atmosphere furnaces, with high quality and excellent performance, are well received by
thousands of new customers every year. The harmony of functionality and design, coupled with the excellent price-performance
ratio, makes this collection their ultimate choice.
Main points：
The furnace shell is sprayed with high-quality cold-rolled plate
The double-layer furnace shell structure is stable, and the furnace surface temperature is low
High quality corrosion resistance strong imported Morgan fiber insulation material
Standard configuration with root working pipe two sealed by steel fittings water jacket, working pipe 99 porcelain corundum tube
Pipe diameters range from 40 to 120 MM and heating lengths range from 200 to 2000 MM
Road gas flow meter (can be divided according to customer needs or two gas flow meters)
Silent electronic relays
A digital PID controller is standard to adjust the heating curve, holding temperature and holding time
Technical parameters：
Operating temperature
1300℃
Continuous operating temperature
1250℃
Temperature control system
THE PID 16/32/40 SEGMENT PROGRAMMED TEMPERATURE CONTROL IS AVAILABLE
Operating voltage：
AC 380V/50HZ
Heating element：
High quality silicon carbon rods
Temperature control accuracy：
＋－1 ℃
Heating rate：
10°C / min
Optional accessories：
Alumina crucibles, computer control software, movable furnace frames, pads, paperless recorders, etc
Warranty period：
Annual warranty period, lifetime maintenance, except for related consumables, such as heating elements, and other consumables
Product Usage：
It is suitable for experiments such as nanomaterials, chemical analysis, physical determination, metal sintering and so on. At the
same time, according to user needs, it can be equipped with atmosphere lines, flow meters and vacuum systems.
Model
power
The furnace chamber has dimensions
Control form
Diameter * high（mm）
HDG-7-13
7
Φ50*200
Microcomputer table
HDG-9-13
9
Φ60*200
Microcomputer table
HDG-11-13
11
Φ80*200
Microcomputer table
HDG-13-13
13
Φ80*300
Microcomputer table
PRODUCT CONFIGURATION
Silicon carbon rods
Silicon molybdenum rod
SALES AND SERVICE NETWORK
Company Profile

Set research and development, production, sales of electric furnace manufacturers

Luoyang Hongda Furnace Industry Co., Ltd. has a history of more than 20 years in the production of electric heating electric furnaces. The company now has more than 20 standardized electric furnaces for applications ranging from 400°C to 1800°C.There are:
ceramics, ceramics, chemicals, laboratory and dental, metal and plastic heat treatment and surface treatment technology art, casting, glass, etc. We have full-time after-sales service engineers, and make every effort to provide customers with perfect technical support and sales Post-service.
Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Are you a manufacturer or trade company？
Yes, we are 100% manufacturer with more than 20 years experiences in production about all kinds of furnaces. All the procedures
will be finished by us, that is good to control the quality and production process.
3.How can you guarantee the production quality?
Firstly, all the processes are strictly following the standard of the metallurgy process; secondly,We have QC department who perform strictly in each producing process including package.
