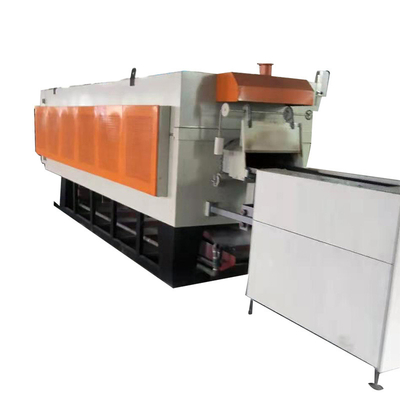

2022 HOT SALE Continuous Annealing Furnace Annealing Furnace Factory Price Nail Screw Nuts Bolt Fasteners Heat Treatment Furnace

1.0 Pieces
MOQ
$52,000.00(1 - 2 Pieces) $50,000.00(>=3 Pieces)
Price
2022 HOT SALE Continuous Annealing Furnace Annealing Furnace Factory Price Nail Screw Nuts Bolt Fasteners Heat Treatment Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor
Voltage: 380V
Dimension(L*W*H): 50m
Weight (T): 60 T
Power (kW): 75
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant
Showroom Location: None
Product Name: Screw Nail Bolts Nuts Heat Treatment Furnace Fasteners
Parts To Be Treated:: Nails And Screws
Energy: Electricity
Protective Atmosphere: Methanol, Propane
Application: Annealing, Quenching, Tempering, Heating
Quenching Furnace Temperature: 800-950℃
Tempering Furnace Temperature: 200-650℃
Quenching Tank Temperature: 60-90℃
Washing Temperature: 40-60℃
Color: Customized
Basic Infomation
Payment & Shipping Terms
Packaging Details: Plywood box or customized Mesh belt furnace electric heating furnace hardening furnace
Supply Ability: 10 Set/Sets per Month
Product Description

Continuous screw nail bolts nuts heat treatment furnace fasteners annealing furnace factory price
Product Overview
USE THE APPLICATION
Widely used for the mechanical parts of automobile fittings, fasteners, chains, bearings and tools etc. To realize the continuous
heat-treatment operations of automatic loading, carbonitriding, quenching, rinsing ,tempering, dyeing and oil-covering etc.
FEATURES AT A GLANCE



Muffle mesh belt quenching furnace

Quenching oil tank

Washing machine

Mesh belt tempering furnace
Quenching oil tank
Washing machine
Mesh belt tempering furnace
PRODUCT SPECIFICATIONS
Multifunctional Heating Electric Continuous Mesh Belt Hardening Furnace
1. Technical Parameters
Equipment assembly
1. Quenching furnace (including oil tank) 9 meters.
2. The washing machine is 2.5 meters.
3. Quenching furnace (including oil tank) is 7.5 meters.
4. The electric control cabinet consists of four major parts. Total length; 19.5 meters.
Studio size
A quenching furnace 4000×300×60mm,
B tempering furnace 5500×500×120mm, (L*W*H)
Power supply
380v (three-phase four-wire) 50Hz
Operating temperature range
200～950℃ (arbitrary adjustment) Process temperature: about 950℃ for quenching furnace, about 650℃ for tempering furnace
The temperature rise of the outer surface of the furnace
≤room temperature＋40℃
Empty furnace heating time
≤1.5h
Temperature control accuracy
≤±1℃
Temperature uniformity
≤±10℃
2. Furnace system structure
Furnace body
The furnace body is integral
Outer shell
SEA1035 cold-rolled steel plate is sprayed with acrylic self-drying paint after anti-rust treatment
Shell skeleton
SEA1035 channel steel and angle steel derusting and antirust treatment
Furnace lining
Use high-end aluminum silicate cotton and high-temperature ceramic fiber cotton and high-strength refractory bricks.
Furnace door seal
Use high temperature asbestos cloth, greatly reduces the loss of heat
Heating position
Set up and down the furnace body to distribute heating in proportion
Heating method
Resistance wire heating
3. Transmission system
Traction method
The discharge and heating of the feeding rack are traction at the same place. Electric drive is adopted, and the feeding and discharging speed of the furnace body is about 300-1500mm/min. The frequency conversion motor and reducer are in the lower part of
the furnace body, and the entire transmission system is not heated.
Transfer method
With a muffle tank, the pallet supports the muffle transmission.
4. In and out of the material rack (one for each)
Control cabinet
Equipped with independent electric cabinet
Temperature control instrument
The main control table adopts high-precision, microprocessor temperature control programming instrument, with PID self-tuning function
Logger
Using LCD touch recorder
Frequency
The transmission system adopts variable frequency speed regulation and speed reducer, which can control the speed steplessly.


Control protection
1. Motor short-circuit protection and over-current protection to prevent motor burnout and tripping
2. Electric heater short circuit protection to prevent electric heater short circuit
3. Control circuit protection to prevent accidents caused by short circuits
4. Air switch Prevents the main circuit from overloading or short-circuiting, causing accidents
Why Choose Us
Q1. How is your company's product after-sales service system?
We have professional pre-sales and after-sales departments and can respond to you within 8 hours to resolve any technical issues.
Q2. How about the quality guarantee period?
1 year, exclude irrationally operating and consumable parts.
Q3. How about your products quality?
CE certification available and twice test before shipping.
Q4. What's your delivery time?
The delivery time based on your details request, like your product size, machine model, order quantity, and so on.
Q5. Why should we choose you?
A: We choose the best supplier out of hundreds of similar factories, which assures that our product is of the best quality.
B: We have more than 20 years experience in this area.
C: We can provide all machines to equip an entire bolt/nut production line.
D: Fully support in buyer workmen training.
E: Fully support in after-sales service.
