200x200x300mm(8''x8''x12") 1600C Lift type annealing muffle furnace hot sale

1.0 Sets
MOQ
200x200x300mm(8''x8''x12") 1600C Lift type annealing muffle furnace hot sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Resistance Furnace
Usage: Muffle Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2022
Warranty Of Core Components: 1 Year
Core Components: Motor
Voltage: 220V
Dimension(L*W*H): Custom Made
Weight (T): 0.05 T
Power (kW): Adjustable
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Showroom Location: None
Inside Chamber Size: 200x200x300mm(8x8x12")
Standard Working Temperature: 1500C ( Continuous )
Maximum Working Temperature:: 1600C ( < 3 Hrs)
Temperature Control:: 30 Steps Programmable And PID Automatic Control
Heating Element:: MoSi2 Heating Elements
Working Voltage: AC 380V Three Phases 60/50 Hz (or According To Your Requirement)
Heating Rate: 0~ 10.C/ Min (suggestion: =< 10.C )
Temperature Accuracy:: +/- 1 .C
Thermocouple: B Type
Furnace Structure: Double Shell With Fan Cooling
Basic Infomation
Payment & Shipping Terms
Packaging Details: veneer case lined with plastic paper and flexible foam,
Supply Ability: 100 Set/Sets per Month
Product Description

200x200x300mm(8''x8''x12") 1600C Lift type annealing muffle furnace hot sale

Product Description

200x200x300mm(8x8x12") 1600C Lift type annealing muffle furnace

1.Max Temp:1600C;Work Temp:1500C

2.Heated by MoSi2 heating elements

3.chamber size:200x200x300mm(8x8x12")

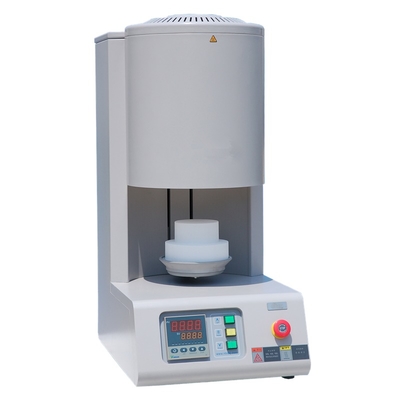

ST-1600BL Bottom Loading Furnace:The single zone, high temperature, bottom loading furnace is capable of operating at temperatures up to 1600.C in air. The furnace utilizes 1800oC MoSi2 heating elements positioned on three sides of the internal chamber. The furnace utilizes an energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation. It is an ideal tool for materials annealing and sintering.

Detailed Product Description :

Inside Chamber Size

200x200x300mm(8x8x12")

Standard Working Temperature

1500C ( continuous )

Maximum Working Temperature

1600C ( < 3 hrs)

Temperature Control:

30 steps programmable and PID automatic control

Heating Rate

0~ 10.C/ min (suggestion: =< 10.C )

Temperature Accuracy

+/- 1 .C

Heating Element

MoSi2 heating elements

Working Voltage

AC 380V Three Phases 60/50 Hz (or according to your requirement)

Thermocouple

B type

Furnace structure

Double shell with fan cooling

Standard Sizes:

Model

Chamber size(WxHxDmm)

Max. Temperature

ST-1600BL

150x150x150mm (6x6x6")

1600C

ST-1600BL

150x150x200mm (6x6x8")

1600C

ST-1600BL

200x200x200mm (8x8x8")

1600C

ST-1600BL

200x200x300mm (8x8x12")

1600C

ST-1600BL

250x250x300mm (10x10x12")

1600C

ST-1600BL

300x300x400mm (12x12x16")

1600C

ST-1600BL

350x350x400mm (14x14x16")

1600C

ST-1600BL

400x400x400mm (16x16x16")

1600C

The characteristics include:

1).Big yield capacity and high productivity,especially used for heating treatment of small or medium products;

2).PID automatic control via current limiting phase angle fired thyristor with 30 steps programmable,to ensure uniform furnace temperature;

3).Loading from bottom,it's convenient and easy.

Options:

Atmosphere Envelopes for applications requiring sealed workspaces for processing in inert gases.

Bottom loading vertical tube units for convenient loading of small crucibles combined with corrosion resistance and atmosphere control.

Bottom loading furnace is aviliable from working temperature 800 .C to 1600.C Furnace chamber size is customizable.

Applications:

1.Crystallize;

2.Sintering or Roasting or Forging or calcining;

3.Ashing;

4.Heat treating or Preheating;

5.Quench or Hardening or Austemper

6.Annealing or Tempering or Normalizing

7.melting or smelting

8.Synthesis and degradation or pyrolysis or decomposing
