Features

Specifications

Condition: New

Type: Resistance Furnace

Usage: Heat Treatment Furnace

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty Of Core Components: 1 Year

Core Components: Motor, Pump

Voltage: 380V

Dimension(L*W*H): 600x800x600

Weight (T): 3 T

Power (kW): 20

Warranty: 1 Year

Key Selling Points: Competitive Price

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction WorksÂ , Energy & Mining

Showroom Location: None

Weight: 300KGS

Product Name: Vacuum Box Furnace

Capacity: 3 Liters

Max Temperature: 1200C

Working Temperature: 1150C

Chamber Material: Alumina Ceramic Fiber

Furnace Type: Box Type

Temperature Control: PID Auto Control

Heating Element: HRE

Chamber: Alumina Ceramic Fiber

After-sales Service Provided: Field Maintenance And Repair Service, Video Technical Support, Online Support

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: None

Certification: ISO9001 CE SGS

Basic Infomation

Certification: ISO9001 CE SGS

Payment & Shipping Terms

Packaging Details: High Standard Exporting Package

Supply Ability: 1000 Set/Sets per Year

Product Description

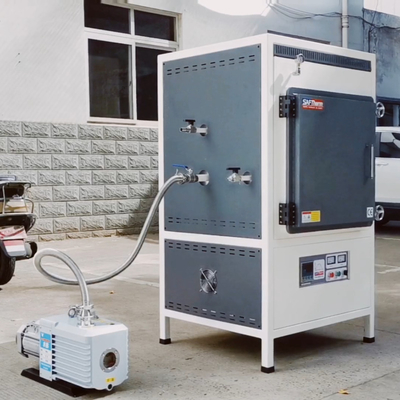

vacuum box muffle furnace vacuum chamber furnace used vacuum furnace

Model	STZ-3-17	STZ-6-17	STZ-8-17	STZ-15-17	STZ-20-17	STZ-36-17	Customized
Chamber size(WxDxH)mm	150x150x150	180x230x150	200x200x200	250x250x250	250x320x250	300x400x300	Any size
Type	Vacuum Box Furnace
Furnace structure	Chamber material, temperature controller system, heating element , furnace shell and other assistant parts
Max temperature	1700℃
Continue Operating Temp.	1650℃
Power supply	220V/4KW	220V/5KW	220V/5KW	220V/6KW	380V/9KW	380V/15KW	Depends on size
Heating element	High quality MoSi2 rod
Chamber material	High temperature polycrystal alumina ceramic fiber material
Temperature precision	±1℃
Thermocouple	B type
Temperature controller	YUDIAN intelligent microcomputer PID controller can program 30 segments
Electronic component	DELIXI make
Heating rate	≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
Safety protection	Overheat and thermocouple-break alarm
Certification	ISO9001 CE
Furnace shell	high quality cold-rolled steel sheets CNC processing
Insulation	High quality thermal insulation material to ensure a good uniformity
Accessories	One pair of high temperature furnace gloves One piece of crucible steel tong
Optional	Paperless recorder Stainless steel exhaust chimney Alumina crucible Vacuum Pump & Flowmeter
