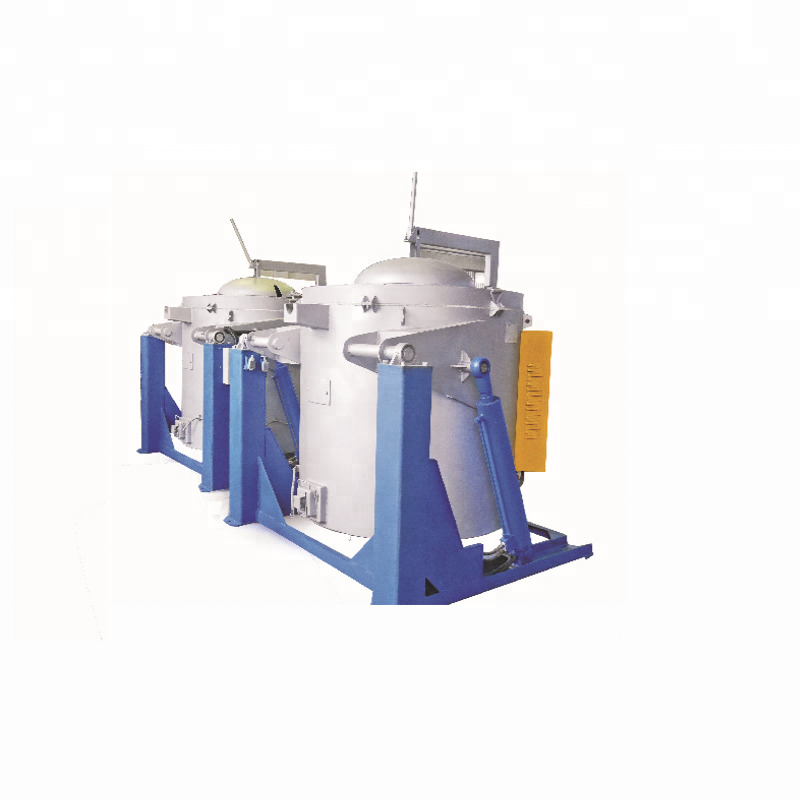

Factory Graphite Crucible Oil Furnace Aluminum Drop Crucible Electric Melting Furnace

The aluminium scrap electric crucible melting furnace is applicable to melting of non-ferrous metal of low melting point such as aluminium, lead, zinc, copper, etc.

Electric Crucible Melting Furnace Electric Crucible Melting Furnace Electric Crucible Melting Furnace

Notes: The aluminum scrap electric crucible melting furnace body can be customized to fit the crucible size that the customer provides.

Aluminium Scrap Melting Furnace aluminum electric melting furnace

Aluminium Scrap Electric Crucible Melting Furnace 1000kgs

The melting furnace consists of the following three parts: furnace body, electrical control system and hydraulic system.

The furnace shell is made from steel plates and sectional steel. The refractory lining is comprised of superlight refractory bricks, silicate aluminum fiber, and heat preservation material.

The heating components are OCr27A17MO2 high-resistance wires which are made into a sprial shape mounted in the refractory bricks. The furnace cover is a whole-body type or a combined type.

The electrical control system adopts PID control with the intelligent temperature controller, and the power regulator. The temperature control accuracy is ±3℃. The furnace also has the over-temperature alarm.

The hydraulic system is used to pour out the aluminum molten liquid.

Heating System:

a)heating components-high-resistance wires (2 pieces per group, 6 groups in total)

Control system: temperature controller (imported from Taiwan, 2 pieces), electronic power regulator, contactor, relay.

Temperature sensing component: thermal coupling (2 pieces together, 1 for measuring the hearth atmosphere temperature and another for measuring the molten aluminum temperature)

Electrical control system (PID control) : The thyristors are the main controlling component of the electrical control system.

Supply Scope:

a) main electrical components
b) control cabinet, 1 piece;
c) temperature controller, Taiwan origin, 2 pieces (one controller with PID regulation).
d) power regulator, 1 set;
e) low voltage electrical components, 1 set;
f) hydraulic control system: 1 set;
g) thermal coupling, 2 pieces (the piece measuring the molten aluminum temperature is sheathed in a protection casing pipe);

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.
