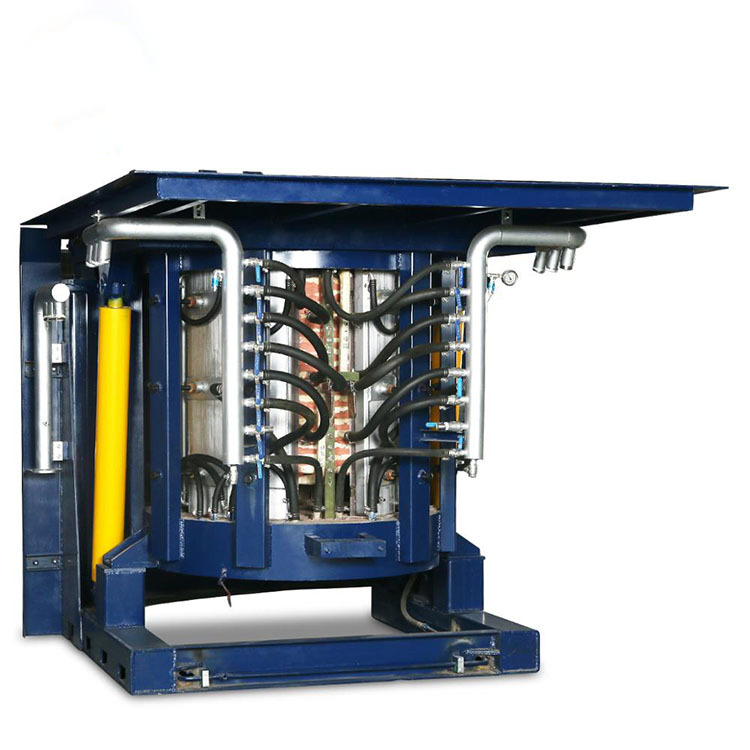

Factory Induction Furnaces 300 Kg Crucible Industrial Aluminum Melting Furnace

1.0 Sets
MOQ
Factory Induction Furnaces 300 Kg Crucible Industrial Aluminum Melting Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Induction Furnace
Usage: Melting Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Voltage: 380V
Weight (T): 2.4 T
Power (kW): 250
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Manufacturing Plant, Energy & Mining, Smelting
Showroom Location: None
Rated Frequency: 1000Hz
Melting Speed: 45min
Output Dc Voltage: 510V
Output Dc Current: 500A
Input Dc Current: 410A
Power Consumption: <630KWH/T
Max Output Voltage: 750V
The Power Factor: 0.92
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: ISO9001,CE
Basic Infomation
Certification: ISO9001,CE
Payment & Shipping Terms
Packaging Details: Packing:wooden box or customer requirements.The size of the box is based on the specific products.As the unit area will be heavy , a wooden box contains a steel furnace.
Supply Ability: 20 Set/Sets per Quarter Steel shell induction furnace
Product Description



The medium frequency smelting furnace mainly used for melting and refining all kinds of scrap metal, iron, stainless steel, copper, aluminum.
This furnace can smelting the scrap iron, like scrap auto parts, scrap steel bars, scrap screws, iron leftover materials etc.

Product Features:
  1. Various capacity 0.1T -20T, fast melting speed, 40-60 minutes /pot.
  2. Have self-test function, real-time supervise.
  3. Have leaking alarm device, PLC control, easy to operate.
  4. The control cabinet is standard of the automobile line, easy to maintain
  5. The water way uses carbon-free hose , water separetors and clips use 304 stainless steel
  6. Can meet 24 hours continuous work.
  7. High efficiency , low cost , easy to maintain, energy saving ,safe and stability.

The melting furnace mainly composed of power control cabinet and melting furnace body.

  • The equipment can meet 24 hours of continuous work.
  • It have self-test function and leaking alarm device.
  • Real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information.

Induction Melting Furnace:

It has the bottom of the oxygen blowing, reducing carbon, slagging function.

Cyclone type smoke hood has excellent dust absorption , thermal insulation effect and take up a small space.

Long service life.

Power Supply:

The utility model has the advantages of obvious energy saving effect and 20% saving compared with common equipment.
It can achieve that one power supply cabinet for two furnaces.Transformer utilization rate is high.
The two furnaces can cast simultaneously and also can supply continuously molten steel casting.
Arbitrary power allocation, starting rate of 100%

Closed type cooling tower:

Heat exchanger:The materials of coil group is high quality of T2 depickling copper tube or stainless steel pipe .Set water tank and the tower body is made of aluminum zinc steel plate plate and the service life is over 15years.

Hydraulic pressure station:

Including hydraulic pump station and tilting furnace operating table.
The hydraulic pump station is used to provide power to the tilting furnace.The rated working pressure of the pump station is 11Mpa.

Capacitor Bank :

The double-layer mica insulation technology is used for the insulation treatment of the capacitor.
Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.
