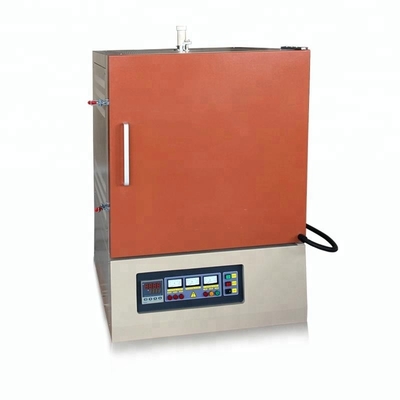

Laboratory Equipment Laboratory Electric Heating Sintering Equipment Box Ceramic Muffle Furnace

1.0 Pieces
MOQ
Laboratory Equipment Laboratory Electric Heating Sintering Equipment Box Ceramic Muffle Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Classification: Laboratory Heating Equipments
Customized Support: OEM
Model Number: SYN-B1500-S
Usage: High Temperature Sintering
Temperature Control: 51segments Programmable
Heating Element: SiC
Heating Rate: 20 ℃ /min
Thermocouple: S Type
Max Temperature(℃): 1500℃
Power(KW): 2.0
Chamber Size: 4.7" X 4.7" X 4.7 "
Type: Ceramics Sintering Furnace
Application: Lab Equipment
Certification: CE
Basic Infomation
Certification: CE
Model Number: SYN-B1500-S
Payment & Shipping Terms
Packaging Details: Inside: Wrapped by PE paper Mid: Filled with Poly-foam. Outside: Packed in a wooden box
Supply Ability: 200 Set/Sets per Year
Product Description
Products Description
Hot sale Laboratory Electric Heating Ceramic Sintering Equipment Box Muffle Furnace
1. Double-layer steel casing with air cooling to keep furnace surface temperature lower than 60°C, much safer to touch. 2. High purity fibrous alumina insulation for Max. energy saving. 3. Special refractory coating on inner and heating elements to increase furnace life. 4. PID temperature controller to meet full automatic constant temperature function. 5. Fast heat-up to reduce energy consumption. 6. Over-temperature protection and over-load protection.
Specification
Standard Working Temperature
1400°C  (continuous)
Maximum Working Temperature
1500°C  (< 3 hours)
Temperature Control
Digital temperature control with 51 segments programmable and automatic PID function and overheated alarm.
Furnace Structure
Double shell steel case with cooling fan to keep outside case cool
High purity alumina fiber insulation for max. energy saving
Material
Energy saving 1800 grade fibrous alumina insulation
High purity Al2O3 coating.
Heating Rate
0-20 °C/min (suggestion ≤ 10°C)
Temperature Accuracy
+/- 1 °C
Chamber Dimension
8" x 8" x 12" (200x 200x 300 mm )
Heating Element
1800 grade MoSi2 (30 x 360mm)
Working Voltage
208~240V AC, Single phase, 50/60Hz
Power
4 kw
Thermocouple
B type
Shipping Dimension
45" x 45" x 45"
Net Weight
135 Kg
Shipping Weight
360 Lbs
Warranty
One year manufacture limited warranty and free replace all defective parts (not including spare parts).
Details Images
OUR SERVICE
1. One-year quality warranty for the whole furnace. 2. Reply to your inquiry in 24 working hours. 3. Experienced staffs answer all your questions in fluent English. 4. Customized design is available. 5. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
Specializing in research and development lab furnaces for more than 10 years gives you the most professional service. Responsible production leads to high quality. Large-scale production lines ensure a fast delivery time. The best package keeps your goods safer and transports easier.
Relanted Products
Our Company
Henan Synthe Corporation was founded in January 2013, as a separate and independent company to better serve its customers. SYNTHE was engaged in the design, development, manufacture, and sales of high-temperature insulation, vacuum-formed ceramic fiber heaters, diffusion heaters, and high-quality thermal processing equipment, all custom designed to meet your thermal requirements. Our products are used around the world in the most demanding heat treatment, lab thermal furnaces, dental, photovoltaic solar, semiconductor and environmental protection applications, temperature ranges from room temperature 20°C ( 68°F) to 1800°C ( 3272°F). For over ten years in the industry, we have been a problem-solver working with our customers to resolve their thermal management problems.
Product packaging
FAQ
1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.

2.How to install the furnace? If the furnace needs repair after the sales.
Our company can train how to install the furnace. If you need, our technic worker can install and repair in overseas.

3.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.

4. What is the delivery time?
10-25 days after receiving the deposit
If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is
about 10-25days.

5. What's your regular practice concerning terms of payment?
A: Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
