field is balanced.
Stable temperature control, simple operation,
low energy consumption;
Muffle furnace/Atmosphere furnace | ||||||||
temperature (centigrade) | 1200 | 1400 | 1700 | 1800 | ||||
size(mm) customizable | 100*100*100 | |||||||
200*150*150 | ||||||||
300*200*200 | ||||||||
400*300*300 | ||||||||
More sizes can be customized | ||||||||
Tube furnace | ||||||||
temperature (centigrade) | 1200 | 1400 | 1700 | 1800 | ||||
size(mm) customizable | 40*205 | |||||||
60*205 | ||||||||
80*205 | ||||||||
100*205 | ||||||||
40*440 | ||||||||
60*440 | ||||||||
80*440 | ||||||||
100*440 | ||||||||
More sizes can be customized |

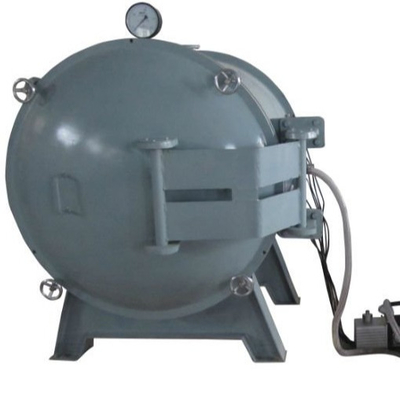

Product model : | SV2-2-17TP high vacuum furnace |
Rated Voltage, frequency & Power | AC220V 50/60HZ; 9kw |
Max. Temperature | 1700.C |
Continuous Working Temperature | 1600.C |
Furnace chamber size (D X W X H) | 200x150x150mm, 4.5L. |
Heating element: | Mosi2 heater; |
Heating rate : | 0-30 ° C / min; |
Temperature Controller | PID automatic control and auto-tune function. 50 programmable segments for precise control. Built in protection for over-heating and broken thermocouple. Large digital control panel for easy operation. |
Temperature control accuracy: | ±1.C |
The furnace shell : | Double air cooling structure |
Furnace chamber | High quality alumina fiber furnace, reasonable design, durable, heat preservation performance is good, saving energy; |
Furnace door type: | Side opening |
Temperature measuring element : | B type |
Standard accessories: | Reserve heater 2pc, vacuum pump 1pc, high temperature gloves 1 pr, crucible tongs 1pc, User Manual 1pc |
