laboratory muffle furnace for ceramic agglomeration 1200 degree heat treatment laboratory muffle furnace for ceramic agglomeration

1 Set
MOQ
$1,250.00(1 - 4 Sets) $1,230.00(>=5 Sets)
Price
laboratory muffle furnace for ceramic agglomeration 1200 degree heat treatment laboratory muffle furnace for ceramic agglomeration
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Classification: Laboratory Heating Equipments
Customized Support: OEM
Model Number: SX2-6-12TP
Product Name: 1200 Degree Heat Treatment Muffle Furnace
Max. Temperature: 1200.C
Working Temperature: 0-1100.C Continious
Chamber Size: D300*W200*H200mm
Voltage: 220v 50Hz/60hz
Heating Elements: Resistance Wire
Heating Rate: 0-20C/min
Temperature Control: 30 Segments Programmable Control
Chamber Material: High Purity Alumina Fiber
Application: Laboratory Muffle Furnace For Ceramic Sintering
Basic Infomation
Model Number: SX2-6-12TP
Payment & Shipping Terms
Packaging Details: Plastic paper inside, Polyfoam filled, plyWooden box outside.
Product Description

1200 degree heat treatment laboratory muffle furnace for ceramic sintering

Our Services



Product Description

XY series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled byhigh precision SCR (Silicon Controlled Rectifier) digital controller with accuracy ±1℃ and 30 segments programmable. It is an ideal tool for Materials annealing and sintering in your research laboratory.



Technology parameter

Product applicationWidely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.



The detail specifications of 1200 degree heat treatment laboratory muffle furnace for ceramic sintering

Max.temperature 1200C
Working temperature 0-1100C
Furnace Chamber size(DWH)mm D300*W200*H200 or as your requirement
Heat element Resistance wire
voltage and frequency 220v 50Hz/60Hz 6KW
Heating rate 0-20C/min
Temperature accuracy ±1°C
Thermocouple K type

Temperature control

 Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

Furnace shell  structure

 Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Temperature control security

 The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.


Furnace Chamber material

 Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.


Furnace chamber design

 Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

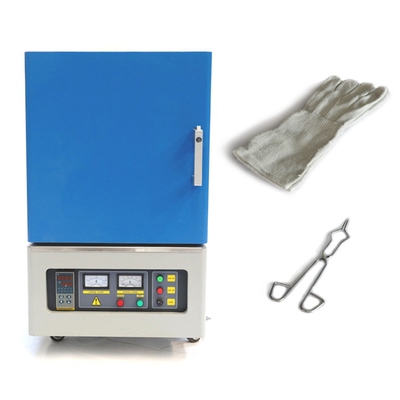

 Sandard accessories  Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace
Other temperature options 1200C,1400C,1700C,1800C
Furnace chamber standard size 100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size
Waranty One year





Detailed Images



High temperature furnace test area





Related products



Certifications

Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.





Company Information

Nanyang Xinyu New Material Technology Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.

We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.



The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.



Our furnaces have been exported to more than 30 countries and with good feedback from our customers.

Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.



Mainly products:

  Car bottom furnace

  High vacuum furnace

  Tube furnace

  Muffle furnace

  Atmosphere furnace

  Crucible furnace

  Bottom loading furnace

  Dental sintering furnace

  Etc.





How to make an order



FAQ



1. Q:Are you muffle furnace manufacturer?

    A: Yes, we are professional muffle furnace manufacturer of China.



2. Q:What kind terms of payment can be accepted?

    A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.



3. Q: Can I ask for customized furnace?

    A: Yes, customized furnace is accepted.



4. Q: What about the delivery time?

    A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.



5. Q: What about the guarantee period?

    A: The guarantee period is 12 months.



6. Q: What about the Minimum Order Quantity?

    A: The MOQ is 1 pcs
