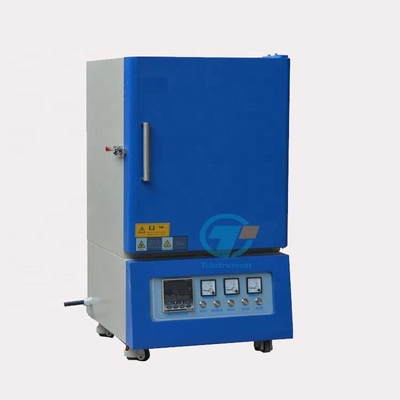

1400C High Temperature Laboratory Chamber Muffle Furnace Heating By SiC Rods TCH-M1400

TCH-M1400 series furnace has many advantages of uniform temperature field,low surface

temperature,heating or cooling promptly,energy saving and so on.

It is the ideal muffle furnace for power sintering,ceramic sintering,high temperature experiment and quality inspection in Industry,Scientific research institutes,Universities,

which offer Heating element of Sic and double layer structure with air cooling system

between the double walled housing to help the furnace heat or cool promptly.Temperature

controller is Shimaden 40segments digital controller imported from Japan. The chamber is made of 1600 Polycrystalline alumina fibre imported from Japan.

Features:

1.Temperature controller: Shimaden FP93

• 40 programmable segments (Shimaden fp93 made in Japan), It can separate into 4,2,1

programs, ie. 4x10 segments.

• FP93 have 6 PID controls, different PID are used for low,middle,high temperature for

precise control.

• Over-temperature and over-current protection, shutdown automatically when

thermocouple is broken( it will shut down power when temperature is higher than

1420C or thermocouples is broken, "ON" on the board is off and "OFF" is on)

• There is Fahrenheit (F) and Celsius (C) for option.
• With 485 communication interface: which can stop the furnace automatically.

2.Cover opening protection system: overtravel-limit switch is installed to protect user, it will cut

off power when the cover open.

3.Chamber:it is imported from USA, good performance of heat preservation, high reflectivity,

even temperature field, good ability of anti thermal expansion and cold contraction.

4.Heating element:This furnace is installed with Sic heating element to ensure uniform

temperature field and long service life.

5.Leakage protection function:the furnace is installed with leakage air switch, it will cut off power

Automatically when electricity leak or current exceed rated current.

6.Software controlling system:this furnace can control every parameter directly and observe PV

and SV on the computer by communication interface and software, computer can draw and

save actual heating curve, it is convenient to call these dates at any time.

7.Controlling system:

Power control: Chint; Controlled silicon:Germany Semikron 106/16E; Trigger:Phase-shift trigger

Specification of the 1400C high temperature laboratory chamber muffle furnace heated by sic rods

reference of the 1400C high temperature laboratory chamber muffle furnace heated by sic rods

other related lab furnaces for your choice, please click the photos for details
