Test methods for flammability combustion test chamber, flame retardant test equipment with burning test

1.0 unit
MOQ
Test methods for flammability combustion test chamber, flame retardant test equipment with burning test
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: JCK-3
Power: 100W
Product Name: Flammability Tester
Application: Test Methods For Flammability
Function: Building Material
Standard: ASTM
Raw Material: Stainless Steel
MOQ: 1 Set
Certificate: CE ISO
Keyword: Flammability
Color: Copper Yellow
Power Supply: 220V 50Hz
Basic Infomation
Certification: CE ISO
Model Number: JCK-3
Payment & Shipping Terms
Packaging Details: Wooden box900*590*1050mm
Supply Ability: 100 Unit/Units per Month
Product Description
Product Description

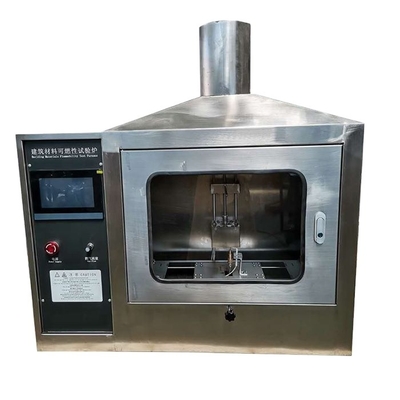

Jck-3 touch screen controlled building materials flammability test furnace is an upgraded product with the functions of controllable automatic lifting of sample and advance and retreat adjustment of Bunsen lamp on the basis of the old jck-2 product. It is a high configuration building materials combustion level test instrument produced in strict accordance with the national standard gb8626-2007.

The combustibility test furnace of building materials is to directly impact the vertically placed samples with small flame in normal combustion environment to determine the combustibility of building products. Based on kleinbrenner's principle, the combustibility test furnace for building materials is used to determine the combustion performance of class B building materials under the direct impact of small flame in the vertical direction (i.e. to determine the combustion performance
/ flame retardant class B of building materials).

2、 Main technical parameters
1. Ambient temperature: 15 ℃～ 25 ℃;
2. Relative humidity: ≤ 85%;
3. Power supply voltage and power: 220 V, 50 Hz, 100 W;
4. Gas source: commercial propane with purity no less than 95%, which can also be replaced by liquefied petroleum gas in common test (the gas source for transportation safety needs to be provided by users themselves);
5. The flame time of Bunsen lamp is 15s
6. Single chip microcomputer control, digital display.
7. The diameter of burner is Φ 0.17mm, the flame length of Bunsen burner is 20mm ± 2mm, and the burner can be tilted 45 degrees.
8. Flame (1s-99 s) ± 0.5 s is applied to the sample, which can be adjusted arbitrarily, and the accuracy is ± 0.2 s.
9. Combustible gas source: propane with purity more than 95%.
Company Profile
Hebei Zhongbo Ruike Instrument Manufacturing Co., Ltd. is a company engaged in the production, research and development and sales of various testing instruments. The company produces and develops several series of products such as concrete and mechanical test equipment, cement, asphalt, geotechnical and so on. The company has strong technical force, has a group of technicians with many years of production experience, and with scientific management and strict system to ensure the good quality and reputation of the company's products. After more than ten years of experience accumulation and development innovation, the company has become an instrument sales center with complete product specifications, quality, good price and large production and sales in the industry, operating various types of testing machines and various testing instruments. And has formed an economic and technological entity serving scientific research, production, sales, and wholesale. Taking customer needs as the starting point, accurately position the market, improve product strategies, strengthen pre-sales, sales, and after-sales services, and constantly introduce new products that adapt to the market's snowballs. The company has strong scientific research force and many technical talents. In line with the principle of "excellent quality, customer first", our company is willing to be your loyal partner on the road to success! The company's talent concept: customers first, honesty and trustworthiness, continuous innovation and common development.
Our Advantages
Major Market
Payment Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
