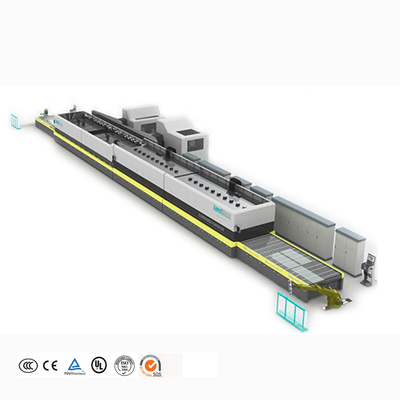

Architecture custom double heating chamber equipment landglass certified new model tempered glass making machine

1.0 Sets
MOQ
Architecture custom double heating chamber equipment landglass certified new model tempered glass making machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Construction Works , Glass Processing Industry
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 25-28 Loads/h
Voltage: 380v
Power: Different By Sizes
Dimension(L*W*H): According To The Types
Weight: Kg
Warranty: 1 Year
Key Selling Points: Energy Saving
Glass Thickness: 4-19mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Product Keywords: Glass Tempering Furnace
Tempering Type: Flat Glass Tempering
Application Range: Architecture, Furniture, Automobile, Household Appliance, Solar Energy
Heating Method: Electrical Heating-Jet Convection
Installed Capacity: 1600/1800/3500kVA
Max Glass Size: According To Your Requirements
Min Glass Size: 200mm*400mm
Glass Thickness: 2.85-19
Productivity (loads/h): 25-28
Color: Customers' Request
Basic Infomation
Payment & Shipping Terms
Packaging Details: Double heating chamber personalized equipement landglass certified tempered new model tempered glass making machine Package details: In containers. To be packed in standard export packing-suitable for long-distance shipping.Glass tempering furnace will be
Supply Ability: 20 Set/Sets per Month tempered glass furnace
Product Description
Product Description
Forced convection heating small glass furnace tempered glass making machine
1. LD-AT0 JetConvection PlusTM Combined Flat Glass Tempering Furnace has two heating sections with JetConvection PlusTM heating technology applied on the top and on the bottom; it can temper glass with the best quality.

2. Different working modes can be set in order to focus on quality, productivity or loading size.
If the first heating section works as preheating furnace, it will reduce quality defects such as optical distortion, spherical bending, hot spots, white haze, etc.
If both heating sections work as independent heating furnaces, it will largely increase throughput.
If two heating sections work as one big heating section, it will be able to process extra large glasses.
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Model
A1636T0+
A2450T0+
A3080T0+
Max.size
1600x3600
2440x5000
3000x8000
Min.size
150x350
200x400
300x500
Thickness range
2.85-19
4-19
5-19
Productivity(5mm)
24-28(5mm clear glass)
20-24(6mm low-e glass)
24-28(5mm clear glass)
20-24(6mm low-e glass)
24-28(5mm clear glass)
20-24(6mm low-e glass)
Installed Capacity
1600kVA
1800kVA
3500kVA
Detailed Images
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
LD-AT0 JetConvection PlusTM Combined Flat Glass Tempering Furnace has two heating sections with JetConvection PlusTMheating technology applied on the top and bottom.This tempering furnace ensures an excellent quality and a higher performance. Glass that can be tempered includes: on-line and off-line Low-E (E=0.02) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe,U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
GlassTech
China Glass
China Glass
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
If you are interested in our glass tempering furnace, please feel free to contact us.
