High Temperature Laboratory Heat Treatment 1200C 1400C 1700C Box Muffle Furnace For Material Powder Processing 100*100*100mm

1.0 Sets
MOQ
High Temperature Laboratory Heat Treatment 1200C 1400C 1700C Box Muffle Furnace For Material Powder Processing 100*100*100mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Classification: Laboratory Heating Equipments
Customized Support: OEM
Model Number: MF-1700M
Thermocouple: B Type
Max. Temperature: 1800.C
Heating Elements: Mosi2 Heater
Working Temperature: 1700.C Continious
Chamber Size: 100*100*100mm
Temperature Accuracy: +/- 1.C
Voltage: 220V
Power: 1KW
Basic Infomation
Model Number: MF-1700M
Payment & Shipping Terms
Packaging Details: Standard export package or wooden case,1set/carton
Supply Ability: 200 Set/Sets per Month
Product Description

Laboratory Heat Treatment High Temperature 1200C 1400C 1700C Box Muffle Furnace For Powder Material Treatment

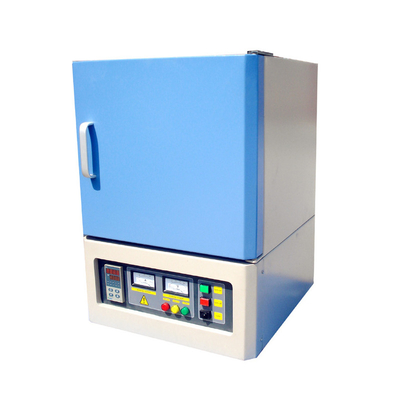

Our box type muffle furnaces are the most cost effective high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy ±1ºC and 51 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory.
Product Paramenters
Model
MF-1200M
MF-1400M
MF-1700M
MF-1800M
Max. Temperature(℃)
1200
1400
1700
1800
Working Temperature(℃)
≤1100
≤1300
≤1600
≤1750
Heating Rate
0-20℃/min
Temperature Accuracy
± 1℃
Temperature Control
51segments programmable and PID auto control
Furnace Chamber
Ceramic fiber
Furnace Structure
double shell with fan cooling
Thermocouple
K type
S type
B type
B type
Heating Elements
Fe-Cr-Al-Mo wire
SiC heater
MoSi2 heater
MoSi2 heater
Voltage(V)
220V/380V 50/60Hz
Product detail
Furnace Chamber Size
100*100*100
120*120*130
150*150*150
200*200*200
200*200*300
250*250*300
300*300*300
300*300*400
350*350*500
400*400*400
450*450*450
500*500*500
600*600*600
800*800*800
900*900*900
