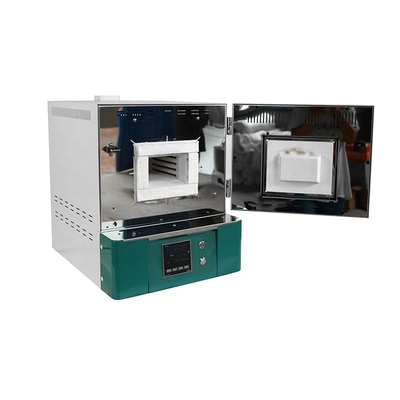

QLAB ceramic fiber imported 1200 double insulated ceramic liner muffle furnaces with best price

1 Set
MOQ
$929.00(>=1 Sets)
Price
QLAB ceramic fiber imported 1200 double insulated ceramic liner muffle furnaces with best price
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Classification: Laboratory Heating Equipments
Model Number: SX Series
Temp. Range: 100-1200℃
Chamber Material: Ceramic Fiber
Insulation Layer: Ceramic Fiber
Heater: Alloy Heating Wire
Certification: CE
Basic Infomation
Certification: CE
Model Number: SX series
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description
1. Mirror stainless steel mouth, long-term use will not change color.
2. Imported double insulated ceramic liner, stable performance.
3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.
4. In the double shell, the air sleeve is insulated, and the double guiding air passage.

SX4 model also has the following characteristics:
1.Adding exhaust devices is beneficial to ashing.
2.Split design, circuit detachable, easy to maintenance and repair.
3.P model is program temperature control type. Program temperature controller can programme multistage program.
Specification
Model
SX3-2.5-12
SX3-5-12
SX3-8-12
SX3-10-12
SX4-2-12
SX4-7-12
SX4-12-12
SX4-16-12
SX4-2-12P
SX4-7-12P
SX4-12-12P
SX4-16-12P
SX4-2-12PB
SX4-7-12PB
SX4-12-12PB
SX4-16-12PB
Heating mode
Alloy wire heating in three sides left; right; top side.
Function
Temp. Range
100-1200℃
Temp. Resolution Ratio
1℃
Temp. motion
±1℃
Temp.Rising time to max temp
≤30min
Structure
Chamber material
Ceramic fiber
Outer shell
cold rolling steel electrostatic spraying exterior; B model: stainless steel
Insulation layer
Ceramic fiber
Heater
Alloy heating wire
Power rating
1.5kW
3.0kW
4.5kW
6.0kW
Exhaust hole
φ30mm(chimney size 80*60mm)
Controller
Temp. control mode
SX3 model: domestic brand single controller; SX4 model: Imported single controller form Japan;
P model: Imported 40 sections program temperature control device form Japan
Temp. setting mode
Touch button setting
Temp. display mode
Measuring temperature: LED upper row, setting temperature: the lower row
Timer
0-9999min (with timing wait function)
SX3 Series no timing function
Operation function
Fixed temperature operation, timing function, auto stop.
Additional function
Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory
Sensor
SX3:Platinum-rhodium sensor；SX4:High precision K type sensor
Safety device
Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature
protection，thermocouple failure
Specification
Inner Chamber size
(W*L*H)(mm)
120*200*80
200*300*120
200*300*200
250*400*160
Exterior size (W*L*H)(mm)
450*685*600
530*785*640
530*785*720
600*895*700
Packing size (W*L*H)(mm)
580*775*730
660*875*770
660*875*850
730*985*830
Volume
2L
7L
12L
16L
Current rating (50/60HZ)
AC220V/6.6A
AC220V/13.6A
AC220V/20.4A
AC380V/9.9A
NW/GW (kg）
33/37
45/50
62/68
77/96
optional type
LCD program temperature control device with USD date storage
