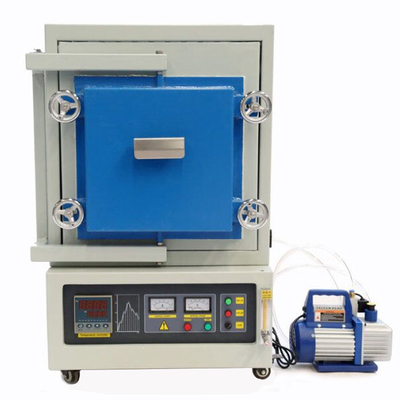

Laboratory High Temperature Muffle Furnaces For Sintering Ceramic Metal Powder Chemicals

1.0 Sets
MOQ
Laboratory High Temperature Muffle Furnaces For Sintering Ceramic Metal Powder Chemicals
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3 Years
Classification: Laboratory Heating Equipments
Customized Support: OEM
Model Number: SX2-1200
Product Name: Muffle Furnaces For Sintering Ceramic Metal Powder Chemicals
Chamber Material: Alumina Oxide
Furnace Structure: Double Shell With Cooling
Temperature Control: 30 Segement Programable And PID Auto Control
Heating Elements: MoSi2 Heating Element
Working Temperature: 1200C
Heating Rate: 0-15C/min
Type: Atmosphere Furnace
Keywords: Vacuum Muffle Furnace
Name: Box Muffle Furnace
Basic Infomation
Model Number: SX2-1200
Payment & Shipping Terms
Packaging Details: Plastic paper inside, Polyfoam filled, Wooden box outside. Laboratory High Temperature Muffle Furnaces For Sintering Ceramic Metal Powder Chemicals
Supply Ability: 500 Set/Sets per Month Laboratory High Temperature Muffle Furnaces
Product Description
Product Description
1200°C muffle furnace consists of high quality alumina fiber brick and SiC heating elements with special design. This lab furnace can be used up to 1200℃. It is an ideal electric furnace for materials annealing and sintering in your research laboratory.
Nitrogen argon inert protective gas atmosphere heat treatment muffle furnace mainly used for university, research institutions laboratory materials heating treatment.
Especially for some special materials, it needs inert gas to protect it from changing due to air at high temperature. In other words, keep it pure to make sure test is perfect.
Detailed Images
1. The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
Size Information
Type
Sintering muffle furnace
Max temperature
1200c
Working temperature
1100c
Chamber size
100×100×100mm
Voltage
220V/ 380V
Power supply
Single phase/ Three phase
Heating element
High quality resistance wire
Temperature control
30 segments programmable and PID auto control
Heating rate
0-30 degree/ min.
Temperature accuracy
±1 degree
Furnace structure
Double shell with fan cooling
Thermocouple
K type
Accessories
High temperature gloves, clip,quartz boat,crucible
Power
High temperature
Temperature
Rising time
Furnace inside dimension
Out size dimension
2.5kw
1000℃
≤50minute
200×120×80mm
542×360×440mm
5kw
1000℃
≤60minute
300×200×120mm
650×440×515mm
8kw
1000℃
≤70minite
400×250×160mm
800×520×587mm
12kw
1000℃
≤80minite
500×300×200mm
920×608×725mm
25kw
1200℃
≤120minite
200×120×80mm
600×440×550mm
54kw
1200℃
≤135minite
300×200×120mm
650×570×550mm
Application
1) laboratory heat treatment with some atmosphere gas (N2,Ar,H2,O2)
2) Ceramics sintering and metal melting.
3) Preheating,Quenching,annealing,temperaing, and normalizing
Related Products
Packing&Shipping
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
After Sales Service
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.Deliver the products in confirmed shipping time and inform customer.
