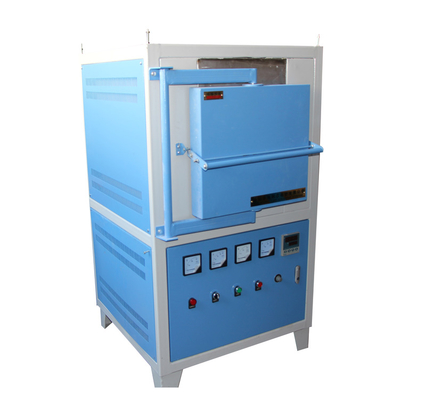

2020 New Product Of Laboratories Or Research Institutes 1600 Degree Furnace High Temperature Muffle Furnace

usage
Research institutes such as mines, universities, laboratories or research institutes Conduct high temperature experiment,quality inspection, ceramic sintering and so on Specification
rated power：20KW rated temperature :1600℃
working size: 400*300*300mm temperature control accuracy: ±1℃
power: 3phase/380V/50HZ
heating element:MoSi2 rod structure of equipment
1、furnace body，the shell is weld with edge folded steel plate。Furnace body and control integrated，Internal and external double shell structure。Air heat insulation，electrostatic powder spraying，Uniform color, delicate and beautiful, corrosion resistant and durable。Front opening box structure，easy to operate.
2、Furnace chamber and furnace liner：the top and side of the furnace use 1700℃ high quality import Vacuum suction molding fiber board splicing ，the bottom bearing weight using furnace floor,The lining is made of alumina fiber felt。Vents are provided at the top，have the advantage of Good thermal insulation performance, fast heating, high efficiency，energy conservation and environment protection .
3、heating，heating uniformly from back and side of the MoSi2 rod.
4、seal，The furnace mouth is equiped with fiber plug brick，Prevent open fires from over flowing.
control Integrated design of control and furnace body，use PID Temperature control program instrument +SCR control，Copper transformer is guaranteed for 8 years，B type thermocouple And other electrical components constitute the control system，Safe and reliable, display current and voltage ，High precision control, programmable, temperature rise curve setting, easy to operate.

1. Are you a manufacturer or trading company?
Both. We are not only a trading company, but also a manufacturer with 30 years history.
