Home /Products/High Temperature Tube Furnace/Laboratory Test Equipment 1200c High Temperature Laboratory Heating Vertical Type Tube Furnace With Quartz Tube

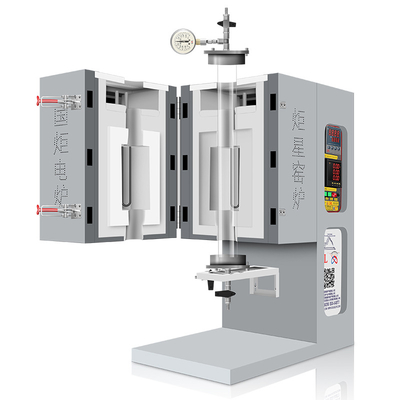

Laboratory Test Equipment 1200c High Temperature Laboratory Heating Vertical Type Tube Furnace With Quartz Tube

1.0 Sets
MOQ
Laboratory Test Equipment 1200c High Temperature Laboratory Heating Vertical Type Tube Furnace With Quartz Tube
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Laboratory Heating Equipments
Model Number: LKQGA
Product Name: Labraotory Tube Furnace
Application: Laboratory Heating Test Equipment
Max Temperature: 1200 Deg C
Working Temperature: 1100C(Continuous)
Chamber Size: Customizable
Model: GWL-LKQGA
Temperature Control: 1C/-1C(Depends On The Chamber Size)
Heating Rate: Max 20C/min
Warranty: 1 Year
Tube Material: Quartz Tube
Basic Infomation
Model Number: LKQGA, GWL-LKQGA
Payment & Shipping Terms
Packaging Details: The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the the container is too tight, we will use pe film for packing or pack it according to the real situations.
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description
Product Name
High Temperature Tube Furnace
Material
Aluminum Fiberboard(Refractory materials) + Superalloy resistance wire(Heating elements)
Function
(1) thermal processing, industrial workpiece processing, cement, building materials industry, small workpiece thermal processing or processing.
(2) pharmaceutical industry: used for the inspection of drugs and the pretreatment of medical samples.
(3) analytical chemistry industry: as samples for water quality analysis, environmental analysis, and other fields. It can also be used for oil and its analysis.
(4) coal quality analysis: used for the determination of water content, ash content, volatile
content, ash melting point analysis, ash component analysis, elemental analysis.
Package
Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods.

Abstract

The tubular furnace is a new type of high performance and high energy saving furnace developed by the international advanced technology, including single tube, double tube, horizontal, open type, vertical, single temperature zone, double temperature zone, three temperature zone and so on. It is mainly used for experiments and small batch production in colleges and universities,research institutes, industrial and mining enterprises, etc. With safe and reliable, simple operation, high-temperature control precision, good insulation effect, large temperature range, high-temperature uniformity in the furnace, many temperature zones, optional atmosphere, vacuum furnace, etc.

Principle

Loading and unloading materials adopt intermittent manual loading and unloading. When loading, place the material box on the holder of the material basin, open and take out the sealing end cover at one end of the pipe, put the material box holder with the material box, then install the sealing end cover on the flange of the furnace tube and tighten the clamp bolt. After the sintering
process of the product is completed, the process atmosphere should be maintained in a small amount and the temperature should be cooled. Only when the temperature in the furnace is lower than the process requirements, can the sealed end cover of the furnace tube be opened and the product is taken out.

Flange

The part that connects a pipe to a pipe, connected to the end of the pipe. There are holes in the flange, and the bolts make the two flanges close. also has the gasket between flanges. One section of the flange contains a pressure gauge, which can be used to observe other pressures in the furnace tube, and a floating ball flowmeter is installed on the inlet pipe to facilitate customers to control the atmosphere flow according to the process requirements.

Tube Materials

Heat resistant steel, quartz glass, ceramic tubes and other materials are available for tube furnace. Heat resistant steel and quartz glass tubes are usually used in the heating environment with the temperature lower than 1200 degrees Celsius, and ceramic tubes are used the temperature lower than 1700 degrees. GWL provides different choices of furnace tube materials to facilitate customers' selection of furnace tube materials for their processes.

Control panel

The control panel is equipped with an intelligent temperature controller so that the working status of the system can be observed at any time. This product uses a reliable integrated circuit, and the working environment is good. Interference, the maximum temperature when the furnace shell temperature ≤ 45 °C greatly improves the working environment, programmable curve, flexible and convenient, simple operation.
Product Usage
Tubular atmosphere resistance furnace is mainly used in metallurgy, glass, heat treatment, lithium positive and negative materials, new energy, abrasive tools and other industries to determine the material in a certain atmosphere conditions of professional equipment.
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.

Our Services & Strength

Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q: IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service. And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
