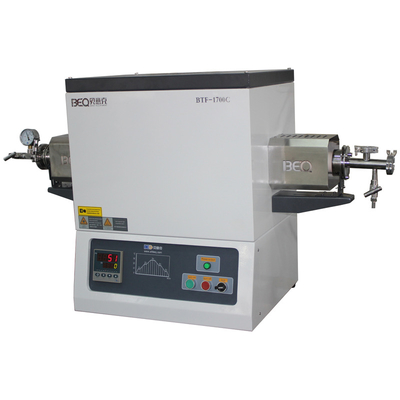

(by mechanical pump) 1.0*10-3Pa high temperature tube furnace for laboratory use alumina tube furnace 1600c horizontal vapor deposition furnace

1.0 Sets
MOQ
(by mechanical pump) 1.0*10-3Pa high temperature tube furnace for laboratory use alumina tube furnace 1600c horizontal vapor deposition furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Laboratory Heating Equipments
Model Number: 1600°C Tube Furnace BTF-1600C
Power: 2.5KW
Max Temperature: 1600C
Voltage: AC 220V 50/60hz
Continuous Temperature: 1550C ( Continuous)
Suggest. Heating Rate: Below 1400℃≤10℃/min,1400℃to1600℃≤5℃/min
Tube Size: 60*1000mm 80*1000mm
Furnace Size: 610*440*720mm
UsageVacuum Level: 1.0*10-3Pa(by Mechanical Pump)
Weight: 130kg
Product Name: Horizontal Chemical Vapor Deposition Furnace
Basic Infomation
Model Number: 1600°C tube furnace BTF-1600C
Payment & Shipping Terms
Packaging Details: Woody PACKAGE for horizontal chemical vapor deposition furnace
Supply Ability: 10 Acre/Acres per Month
Product Description
Product Description
Specification
item
value
Classification
Laboratory Heating Equipments
Brand Name
BEQ
Model Number
1600°C tube furnace BTF-1600C
Place of Origin
China
Anhui
Power
2.5KW
Max temperature
1600C
Voltage
AC 220V 50/60hz
Continuous Temperature
1550C ( continuous)
suggest. Heating Rate
below 1400℃≤10℃/min,1400℃to1600℃≤5℃/min
Tube Size
60*1000mm 80*1000mm
Furnace size
610*440*720mm
UsageVacuum Level
1.0*10-3Pa(by mechanical pump)
Weight
130kg
Product name
horizontal chemical vapor deposition furnace
Packing & Delivery
Woody PACKAGE for horizontal chemical vapor deposition furnace
Company Profile
Anhui BEQ Equipment&Technology is sited in high-Tec zone of Hefei City,Anhui Prov,China.BEQ is awarded as little giant enterprise of science and technology in Hefei and model enterprise of new energy industry.The registered capacity is ten millions and the invested amount is three billion.With years developed,BEQ have owned many experts,of them one belongs to state thoustand talent project,two belong to state thousand youth talent project.Three of them are professor.There are departments.Both are used for researching of new preparation equipment of new material and new technology.By now we have owned 35 patents,of then,15 patent is for invention.Nine make up for the fellow in China and three is outstanding all over the world. Anhui BEQ Equipment&Technology is professional in preparation equipment developing and producing for new material and new energy. We are reaching in kinds of material industry,such as Graphene,CNT,High temperature phosphors,OLED,Semi-conductive material,magainism material,file preparation,Single crystal of metal or ceramic,Cell and fuel and so on.We produce the OLED equipment(output can be5-50kg)Silver sintering equipment(20-200kg),CSS system,RTP furnace,graphene growing furnace,PECVD system,CVD system,furnace of high temperature and high pressure,Vacuum sintering furnace and so on. We supply mal-funstion Lab,You can try by yourself or post to test for free in our Lab. We supply the complete services.We will arrange for you!
FAQ
1. who are we?
We are based in Anhui, China, start from 2012,sell to Domestic Market(20.00%),Eastern Europe(12.00%),Eastern Asia(9.00%),Central America(8.00%),Western Europe(8.00%),Mid East(7.00%),Northern Europe(7.00%),Oceania(5.00%),North America(5.00%),South America(5.00%),Southeast Asia(5.00%),Southern Europe(4.00%),Africa(3.00%),South Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
tube furnace,muffle furnace,CVD chemical vapor deposition system,PECVD plasma enhanced chemical deposition,gas-supply sytem

4. why should you buy from us not from other suppliers?
Anhui BEQ Equipment&Technology is professional in preparation equipment developing and producing for new material and new energy.such as LAB instrument such as tube furnace, muffle CVD,PECVD and kinds of heating parts.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese
