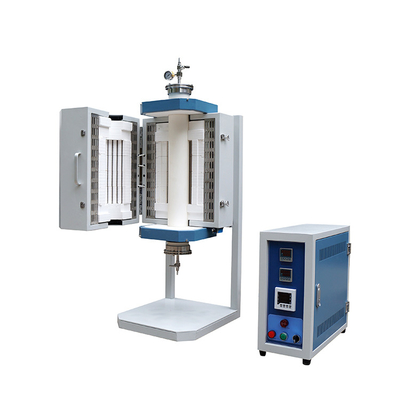

Lab Testing Machine CVD Tube Furnace with PID Control O.D.100*1000mm/300mm

Product Application

These compact tube furnaces are used when laboratory experiments must be performed horizontally, vertically, or at specific angles. The ability to configure the angle of tilt and the working height, and their compact design, also make these tube furnaces suitable for integration into existing process systems. Vertical or horizontal operation freely adjustable, working height freely adjustable, Operation also possible separate from stand if safety guidelines are observed; Control system integrated in furnace base; Defined application within the constraints of the operating instructions

Main Features

1. Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long          term high temperature, sturdy and durable

2. Vertical or horizontal operation freely adjustable; working height freely adjustable,
3. Operation also possible separate from stand if safety guidelines are observed

4. Control system integrated in furnace base
5. Defined application within the constraints of the operating instructions
6. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
7. The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design,            reasonable, easy to disassemble and convenient for entering and leaving sintered samples
8. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
9. Using intelligent Yudian PID temperature control instrument, with program function, can set the temperature rise            curve, can be programmed 30 segments
10. When the instrument program is set, just press the run button and the next work will be completed automatically
11. It can be installed with a gas mass flowmeter, digital precise control of the gas.

About Us

Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan﹒China Free Trade Zone. SAFTHERM products cover 1000℃/1200℃/1300℃/1400℃/1600℃/1700℃/1800℃ Box furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace, Pusher furnace, and so on.

Get answers here

1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
