Features

Specifications

Condition: New

Type: Resistance Furnace

Usage: Heat Treatment Furnace

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC, Engine, Motor, Pump

Voltage: AC 380V,50/60Hz

Dimension(L*W*H): 1420* 860*1280mm(Depth*width*height)

Weight (T): 1 T

Power (kW): 12

Warranty: 1 Year

Key Selling Points: Easy To Operate

Applicable Industries: Printing Shops

Showroom Location: None

Application: Heat Treatment

Feature: Environmentally Friendly

Furnace Type: TF1000-250-HV-T10

Brand: Normantherm

Capacity: 1000kg (adjustable)

Heating Method: Induction, Resistance,

Vacuum System: Vacuum Pump

Input Voltage: AC 380V,50/60Hz

Weight: 0.55T

Max Temperature: 1000

Basic Infomation

Payment & Shipping Terms

Packaging Details: pallet package

Supply Ability: 10 Set/Sets per Month

Product Description

Products Description

Main Features:

1.It adopts a double-layer shell structure and is equipped with an air cooling system to make the temperature of the shell

surface less than 60 degrees.

2.The furnace material adopts 1500 type alumina polycrystalline fiber board, which has small shrinkage rate, low thermal

conductivity, good heat preservation effect, durable and energy-saving

3.The heating element adopts HRE alloy wire, which has high surface load, high resistivity, good oxidation resistance and

durability.

4.The furnace door is open on the left, with safe operations such as opening the door to cut off power, over-temperature alarm, and leakage protection.

5. Intelligent temperature control system, with PID adjustment and self-tuning functions, and can program 30 sections of

temperature rising and falling programs; temperature control accuracy is ±1℃.

6. The furnace is equipped with a 485 conversion interface, which can be connected to a computer. Through a dedicated computer control system to complete remote control, real-time tracking, historical records, output reports and other functions with single or multiple electric furnaces

Technical Details:

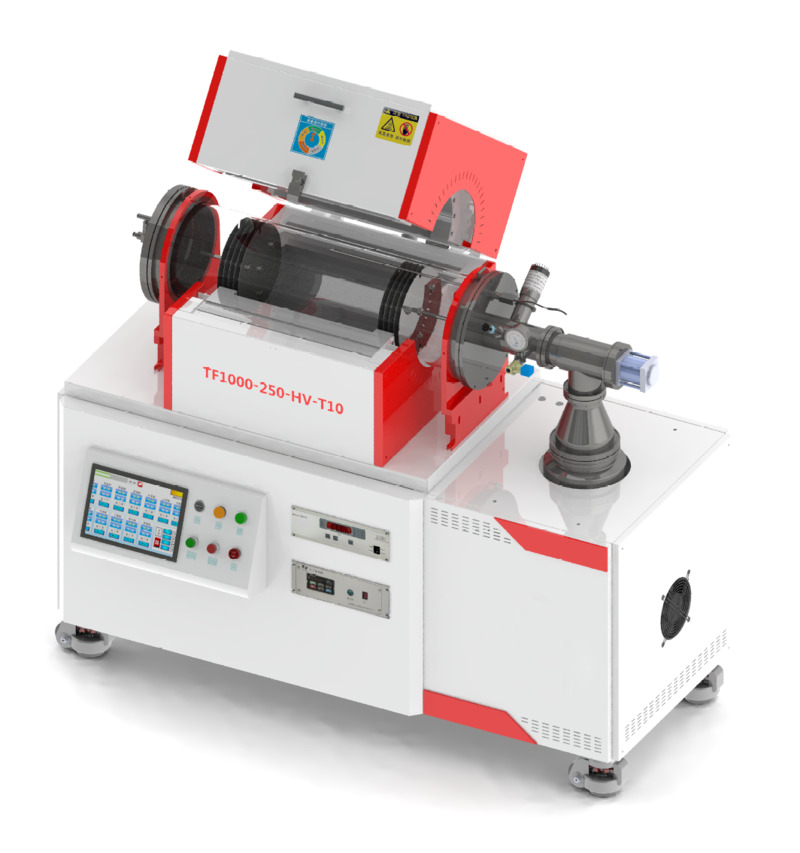

Model			TF1000-250-HV-T10
Basic parameters	Control interface	10 inch LCD touch screen, Beijing Kunlun open state, can preset up to a hundred process programs, and can edit different Chinese and English process names, and call them directly when needed, without interfering with each other, and there is no need to modify the parameters repeatedly.
		Voltage	AC 380V,50/60Hz
		Dimensions	14208601280mm（LWH）
		Equipment weight	550Kg
		Total power of equipment	12Kw
Heating system	heating power	10.8Kw
		Heating zone	400mm
		Effective area	200mm
		Limit temperature	1000℃
		Operating temperature	≤900℃（Under high vacuum）
		Heating rate	≤120℃/min（MAX）
		Temperature sensor	U.S. imports Omega thermocouple OMEGA N type
		Heating element	Infrared tube
		Insulation Materials	Alumina polycrystalline fiber
		Temperature control instrument	30-segment programmable control, temperature control accuracy ±1℃, fuzzy PID control and self-tuning adjustment function
Vacuum system	Ultimate vacuum	3*10-4Pa（Empty furnace cold）
		Vacuum unit power	1Kw
		Compound molecular pump	JTFB-600
		Rotary vane mechanical pump	DRV-10
		Quartz tube and size	250*900mm,Strong stability at high temperature, corrosion resistance, very small thermal expansion coefficient, withstand sudden cold and sudden heat
		High vacuum pipe plugging	2 pcs, stainless steel heat insulation pipe plug
		High vacuum flange	Φ250 water-cooled high vacuum flange (vacuum end), Φ250 water-cooled folding flange (feeding end)
		Flange seal	Fluorine rubber sealing ring, outer diameter 250*5.7mm, four
		Vacuum connection	Manual flapper valve, KF40, one; vacuum bellows, KF40, one, KF25, one
		Compound vacuum gauge	ZDF-5227A measuring range 1.0105~1.010-5Pa
		Water cooler	CW-5200
		Advantages	High efficiency, no pollution, low energy consumption, low noise
Safety protection and tips	Over temperature alarm, broken couple reminder, over current protection, leakage protection
		When it is necessary to open the furnace body to observe the materials or accelerate the cooling, in order to ensure the safety of the users, the power will be automatically cut off
		Molecular pump fault alarm and stop running
		For the first use, be sure to contact the professional after-sales service designated by the manufacturer to communicate the precautions for use.
		If it has not been used for a long time, it is recommended to run at least one furnace empty first to ensure the treatment effect.
		Do not dispose of a large amount of volatile items, so as not to affect the overall performance and life of the equipment.
		Do not handle corrosive items to avoid affecting the overall performance and life of the equipment.
		Please regularly check the water cooler, vacuum pump and other accessories, whether you need to add water or replace the vacuum oil.
Random information	1 copy of instruction manual, 1 copy of warranty certificate
Free service	Free delivery (excluding unloading); free telephone and video guidance installation and commissioning training; free lifetime technical support
Warranty	12 months, except for wearing parts (such as furnace tube, sealing ring, thermocouple, etc.)
Warranty	12 months, except for wearing parts (such as furnace tube, sealing ring, thermocouple, etc.)
